			Home > Product > SMPS > SMARTRON SMPS (조명기구)

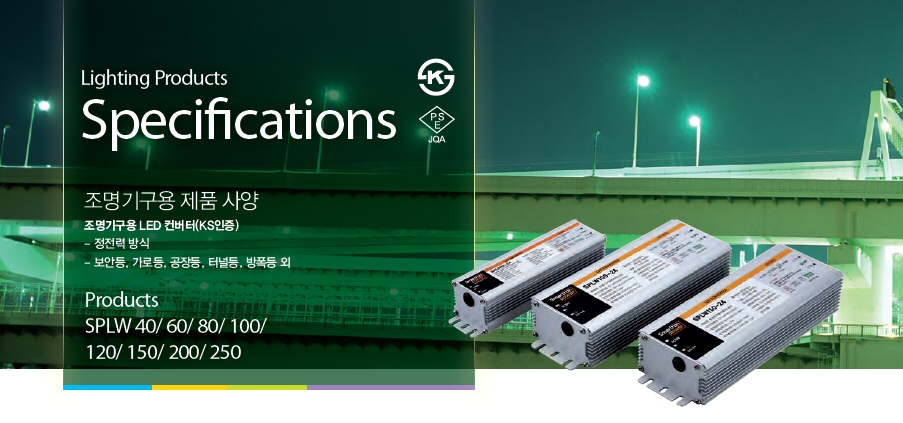

■ S.M.P.S | 스위칭파워

SPL W - Series | 조명기구용 제품 | 정전력

조명기구용 제품

SPECIFICATION

Item/Model	SPLW40			SPLW60
Input Rated Power	40W			60W
Output Voltage	24V	36V	48V	24V	36V	48V
Output Rated Current	1.47A	0.98A	0.73A	2.20A	1.47A	1.10A
Output Max Current	2.31A	1.42A	0.92A	3.47A	2.13A	1.39A
Voltage Range	16~26V	26~40V	40~52V	16~26V	26~40V	40~52V
Ripple & Noise	240mVp-p			240mVp-p
Input Voltage Range	220V 60㎐			220V 60㎐
Input Rated Current	0.20A			0.30A
Inrush Current	60A 이하 ( Cold Start )			60A 이하 ( Cold Start )
Power Factor	0.95이상 ( 220Vac, Full Load )			0.95이상 ( 220Vac, Full Load )
Turn On Time	500ms ( 187~264Vac, max )			500ms ( 187~264Vac, max )
Efficiency	min 87%			min 87%
Protection	Over Voltage, Over Temperature(Tc80℃),Over Load, Short Circuit			Over Voltage, Over Temperature(Tc80℃),Over Load, Short Circuit
Leakage Current	1mA이하(220Vac 60㎐)			1mA이하(220Vac 60㎐)
Operating Temperature	-30℃~50℃			-30℃~50℃
Storage Temperature	-30℃~80℃			-30℃~80℃
Working Humidity	IP68(waterproof)			IP68(waterproof)
Safety Standards	KS, IP68, ROHS			KS, IP68, ROHS
Withstand Voltage	I/P-O/P, L-N,L/N-FG:5KVac(KN61000-4-5)			I/P-O/P, L-N,L/N-FG:5KVac(KN61000-4-5)
KS Certificate	12-1417(KS C 7655)			12-1417(KS C 7655)
AC input Wire	KS, IEC 60227-5, 300/500V,0.75sq x 3C, 250mm			KS, IEC 60227-5, 300/500V,0.75sq x 3C, 250mm
DC Output wire	KETI HH01046-5005, CVCTF, 300/500, 2.5sq x 2C, 250mm			KETI HH01046-5005, CVCTF, 300/500, 2.5sq x 2C, 250mm
MTBF	45,000Hr(Min)			45,000Hr(Min)
Size	170 x 47.8 x 38.9mm			180 x 47.8 x 38.9mm
Item/Model	SPLW80			SPLW100
Input Rated Power	80W			100W
Output Voltage	24V	36V	48V	24V	36V	48V
Output Rated Current	3.00A	2.00A	1.50A	3.75A	2.50A	1.88A
Output Max Current	4.73A	2.91A	1.89A	5.91A	3.63A	2.36A
Voltage Range	16~26V	26~40V	40~52V	16~26V	26~40V	40~52V
Ripple & Noise	240mVp-p			240mVp-p
Input Voltage Range	220V 60㎐			220V 60㎐
Input Rated Current	0.40A			0.50A
Inrush Current	60A 이하 ( Cold Start )			60A 이하 ( Cold Start )
Power Factor	0.95이상 ( 220Vac, Full Load )			0.95이상 ( 220Vac, Full Load )
Turn On Time	500ms ( 187~264Vac, max )			500ms ( 187~264Vac, max )
Efficiency	min 87%			min 91%
Protection	Over Voltage, Over Temperature(Tc80℃),Over Load, Short Circuit			Over Voltage, Over Temperature(Tc80℃),Over Load, Short Circuit
Leakage Current	1mA이하(220Vac 60㎐)			1mA이하(220Vac 60㎐)
Operating Temperature	-30℃~50℃			-30℃~50℃
Storage Temperature	-30℃~80℃			-30℃~80℃
Working Humidity	IP68(waterproof)			IP68(waterproof)
Safety Standards	KS, IP68, ROHS			KS, IP68, ROHS
Withstand Voltage	I/P-O/P, L-N,L/N-FG:5KVac(KN61000-4-5)			I/P-O/P, L-N,L/N-FG:7KVac(KN61000-4-5)
KS Certificate	12-1417(KS C 7655)			12-1417(KS C 7655)
AC input Wire	KS, IEC 60227-5, 300/500V,0.75sq x 3C, 250mm			KS, IEC 60227-5, 300/500V,0.75sq x 3C, 300mm
DC Output wire	KETI HH01046-5005, CVCTF, 300/500, 2.5sq x 2C, 250mm			KETI HH01046-5005, CVCTF, 300/500, 2.5sq x 2C, 300mm
MTBF	45,000Hr(Min)			45,000Hr(Min)
Size	190 x 47.8 x 38.9mm			220 x 78 x 43mm
Item/Model	SPLW120			SPLW150
Input Rated Power	120W			150W
Output Voltage	24V	36V	48V	24V	36V	48V
Output Rated Current	4.50A	3.00A	2.25A	5.63A	3.75A	2.81A
Output Max Current	7.09A	4.36A	2.84A	8.86A	5.45A	3.54A
Voltage Range	16~26V	26~40V	40~52V	16~26V	26~40V	40~52V
Ripple & Noise	240mVp-p			240mVp-p
Input Voltage Range	220V 60㎐			220V 60㎐
Input Rated Current	0.60A			0.75A
Inrush Current	60A 이하 ( Cold Start )			60A 이하 ( Cold Start )
Power Factor	0.95이상 ( 220Vac, Full Load )			0.95이상 ( 220Vac, Full Load )
Turn On Time	500ms ( 187~264Vac, max )			500ms ( 187~264Vac, max )
Efficiency	min 91%			min 81%
Protection	Over Voltage, Over Temperature(Tc80℃),Over Load, Short Circuit			Over Voltage, Over Temperature(Tc80℃),Over Load, Short Circuit
Leakage Current	1mA이하(220Vac 60㎐)			1mA이하(220Vac 60㎐)
Operating Temperature	-30℃~50℃			-30℃~50℃
Storage Temperature	-30℃~80℃			-30℃~80℃
Working Humidity	IP68(waterproof)			IP68(waterproof)
Safety Standards	KS, IP68, ROHS			KS, IP68, ROHS
Withstand Voltage	I/P-O/P, L-N,L/N-FG:7KVac(KN61000-4-5)			I/P-O/P, L-N,L/N-FG:5KVac(KN61000-4-5)
KS Certificate	12-1417(KS C 7655)			12-1417(KS C 7655)
AC input Wire	KS, IEC 60227-5, 300/500V,0.75sq x 3C, 300mm			KS, IEC 60227-5, 300/500V,0.75sq x 3C, 300mm
DC Output wire	KETI HH01046-5005, CVCTF, 300/500, 2.5sq x 2C, 300mm			KETI HH01046-5005, CVCTF, 300/500, 2.5sq x 2C, 300mm
MTBF	45,000Hr(Min)			45,000Hr(Min)
Size	220 x 78 x 43mm			228 x 78 x 43mm
Item/Mode	SPLW200			SPLW240
Input Rated Power	200W			240W
Output Voltage	24V	36V	48V	24V	36V	48V
Output Rated Current	7.5A	5A	3.75A	9A	6A	4.5A
Output Max Current	11.81A	7.27A	4.73A	14.18A	8.72A	5.67A
Voltage Range	16~26V	26~40V	40~52V	16~26V	26~40V	40~52V
Ripple & Noise	240mVp-p			240mVp-p
Input Voltage Range	220V 60㎐			220V 60㎐
Input Rated Current	1.00A			1.21A
Inrush Current	60A 이하 ( Cold Start )			60A 이하 ( Cold Start )
Power Factor	0.95이상 ( 220Vac, Full Load )			0.95이상 ( 220Vac, Full Load )
Turn On Time	500ms ( 187~264Vac, max )			500ms ( 187~264Vac, max )
Efficiency	min 81%			min 81%
Protection	Over Voltage, Over Temperature(Tc80℃),Over Load, Short Circuit			Over Voltage, Over Temperature(Tc80℃),Over Load, Short Circuit
Leakage Current	1mA이하(220Vac 60㎐)			1mA이하(220Vac 60㎐)
Operating Temperature	-30℃~50℃			-30℃~50℃
Storage Temperature	-30℃~80℃			-30℃~80℃
Working Humidity	IP68(waterproof)			IP68(waterproof)
Safety Standards	KS, IP68, ROHS			KS, IP68, ROHS
Withstand Voltage	I/P-O/P, L-N,L/N-FG:5KVac(KN61000-4-5)			I/P-O/P, L-N,L/N-FG:7KVac(KN61000-4-5)
KS Certificate	12-1417(KS C 7655)			12-1417(KS C 7655)
AC input Wire	KS, IEC 60227-5, 300/500V,0.75sq x 3C, 300mm			KS, IEC 60227-5, 300/500V,0.75sq x 3C, 300mm
DC Output wire	KETI HH01046-5005, CVCTF, 300/500, 2.5sq x 2C, 300mm			KETI HH01046-5005, CVCTF, 300/500, 2.5sq x 2C, 300mm
MTBF	45,000Hr(Min)			45,000Hr(Min)
Size	228 x 78 x 43mm			228 x 78 x 43mm
