■ FEATURE	■ APPLICATIONS
AC to AC Power Source (Frequency Converter) True Sine wave Output 운전모드 : CV (정전압), CF (정주파수) 출력 전압 : 0 ~ 300Vac (※옵션:500V/700V/기타사양) 출력 주파수 : 50Hz / 60Hz / 45Hz ~ 999Hz P.A.M(Power Amplifier Modulation) TYPE Digital Control 방식 , 반도체 제어 방식 THD 1% 미만의 Distortion 주파수안정도: ±0.01%, 전압안정도: ≤ ±1%	수출 장비 및 수입 장비시험용 각종 전기,전자 관련 생산 및 R&D 시험용 MOTOR 및 관련 부품 구동 TEST 용 품질 보증 및 신뢰성 시험용 발전기 관련 전력 변환기기 계통 시험용

■ SPECIFICATIONS

MODEL	PTCP-200	PTCP-500	PTCP-1K	PTCP-2K	PTCP-3K	PTCP-5K	PTCP-7.5K
Output Capacity	200VA	500VA	1KVA	2KVA	3KVA	5KVA	7.5KVA
Size(WxDxH)mm	435x550x220	435x550x275	435x620x715	540x895x880	540x895x880	540x900x1000	650x1000x1100
Circuit Type	P.A.M (Power Amplifier Modulation)
Input Voltage	100V / 110V / 115V / 120V / 200V / 230V / 240V / 380V / 440V, 1PHASE or 3PHASE (±10%)
Input Frequency	50㎐ / 60㎐
Output Voltage	0~300V (option : 0~700V), 1PHASE or 3PHASE
Voltage Resolution	1.0 V
Voltage Stability	≤ ±0.2%
Output Frequency	50,60,400,40~999㎐ (option : 10~5000㎐)
Output Resolution	40~99.9㎐: 0.1㎐ / 100㎐~999㎐: 1㎐
Frequency Stability	≤ ±0.01%
T.H.D	≤ 1%
Protector	Electronic Circuit / Over Load / Short Circuit
Frequency Meter	LED Digital Display Res 0.1Hz
V.A-Meter	True RMS LED Digital Display
Temperature	0~40℃
Humidity	0~90%
Output Wave	True sine Wave
* option	Output Voltage : 0~500V / 0~700V (주문제작가능)
* option	Output Frequency 10~5000㎐
* option	Output Metering Function
* option	Remote Control (RS-232C : 0~300V Variable Voltage / 50Hz,60Hz Frequency Select) Remote Muticontrol (RS-485)

MODEL	PTCP-10K	PTCP-15K	PTCP-20K	PTCP-30K	PTCP-50K	PTCP-100K
Output Capacity	10KVA	15KVA	20KVA	30KVA	50KVA	100KVA
Size(WxDxH)mm	650x1100x1200	700x1200x1400	850x1200x1600	1000x1200x1600	1000x1200x1800	1000x1200x1800
Circuit Type	P.A.M (Power Amplifier Modulation)
Input Voltage	100V / 110V / 115V / 120V / 200V / 230V / 240V / 380V / 440V, 1PHASE or 3PHASE (±10%)
Input Frequency	50㎐ / 60㎐
Output Voltage	0~300V (option : 0~700V), 1PHASE or 3PHASE
Voltage Resolution	1.0 V
Voltage Stability	≤ ±0.2%
Output Frequency	50,60,400,40~999㎐ (option : 10~5000㎐)
Frequency Resolution	40~99.9㎐: 0.1㎐ / 100㎐~999㎐: 1㎐
Frequency Stability	≤ ±0.01%
T.H.D	≤ 1%
Protector	Electronic Circuit / Over Load / Short Circuit
Frequency Meter	LED Digital Display Res 0.1㎐
V.A-Meter	True RMS LED Digital Display
Temperature	0~40℃
Humidity	0~90%
Output Wave	True sine Wave
* option	Output Voltage : 0~500V / 0~700V (주문제작가능)
* option	Output Frequency 10~5,000㎐
* option	Output Metering Function
* option	Remote Control (RS-232C : 0~300V Variable Voltage / 50Hz,60Hz Frequency Select) Remote Muticontrol (RS-485)

■ 용량별 외형 SIZE

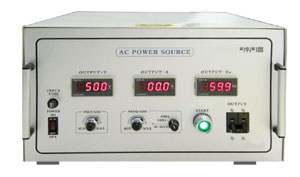

■ PTCP-200~500VA (단상)

W:435 * D:550 * H:266 mm

■ PTCP-1K ~ 5K (단상)

W:350 * D:550 * H:595 mm ~ W:360 * D:600 * H:740 mm

■ PTCP-10K ~ 25K (단상)

W:440 * D:750 * H:830 mm ~ W:550 * D:900 * H:950 mm

■ SELECT GUIDE (모델명 구성 예 : PTCP- 용량 - 전압)
