주요 특징

• 50,000 counts, VFD display

• Dual measurement/Dual display

• Selectable measurement speeds, the maximum: 40 Readings/s for DCV

• The basic precision of DC voltage: 0.02%

• Auto/manual Ranging

• True RMS (AC，AC+DC) measurements

• 11 different measurement functions

• Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm

• Standard USB device interface to connect with a computer

• Temperature measurement function (GDM-8342 only)

• USB storage for Data collection (GDM-8342 only)

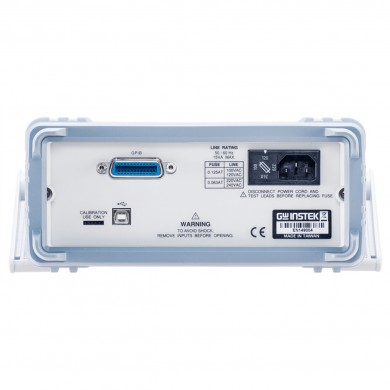

• Optional GPIB (factory install for GDM-8342)

Unrestrained Storage and Connection

   -- Data storage no longer be bound by transmission wire

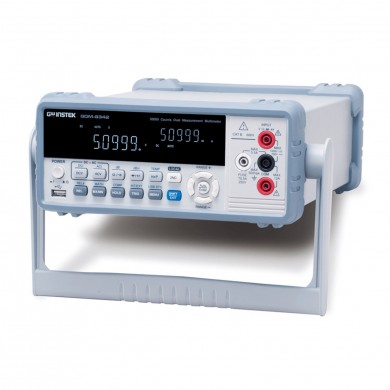

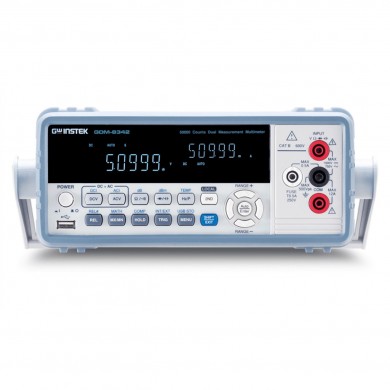

GW INSTEK rolls out the new generation Dual Measurement Multimeter -- the GDM-834x series, which has two models -GDM-8341 and GDM 8342. Its exceptional features include 50,000 counts, VFD dual-display, 0.02% basic DC voltage accuracy and a USB protocol connector to provide users with measurement precision, lucid data observation, and the convenience to connect with the personal computer.

The GDM-834x series not only supports the fundamental measurement items provided by general multimeters, but also equips with capacitance and temperature measurement functions. Furthermore, the GDM-834x series also provides many auxiliary functions to meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities.

With respect to storing and retrieving data, the GDM-834x series has two methods to offer: first, the USB flash drive storage function --- operating alone without connecting with a computer; second, USB interface (virtual COM port) and optional GPIB interface (must be installed in factory) for automatic measurement system users to conveniently save and retrieve data.

Convenient USB flash drive storage function

The major distinction between GDM-8342 and products in the same category is that GDM-8342 provides USB flash drive storage function, which allows users to conveniently save data into a USB flash drive through a simple and proper setting. This unique function, different from other digital multimeters which must first save data into its own internal memory then transfer out the file, or connect multimeters with a computer to retrieve data, not only savesoperational time but also cuts down the cost and time of developing programs.

The USB flash drive storage function incorporates two modes -- basic and advanced, which can be selected from the front panel. When the basic mode is on, data will be saved into an automatically established new folder (time of established file will be determined by system default) and the starting time of data logging will use a fixed time marker (00hr: 00min: 00sec). For advanced mode, users can designate a file path to save data or establish a new folderand the starting time of data logging is determined by users’ inputs (for instance: 23hr: 45min: 32sec). The number of data files can be saved in one second is determined by the speed of selected function.

The USB storage function allows each flash drive to establish 100 folders (GW000 ~ GW099). Each folder has a capacity of saving 5,000,000 data files (which are divided into 100 sub-file names, therefore, each sub-file name can save 50,000 data files. Take folder GW000 as an example, internal file names are GW000_00 ~ GW00_99). The storage format is CSV, which can open files and conduct file analysis by existing tools. (such as Microsoft Excel)

Selectable measurement speeds

The GDM-834x series has three selectable measurement speeds- fast/medium/slow. For instance, the DC voltage measurement can reach 40 readings per second on the fast mode, which can maximize the effectiveness of each measurement.

Various measurement items and functionalities

he GDM-834x series provides various measurement items and functionalities compared with that of the products of same category. There are twelve major measurement items of this series including AC voltage/current, DC voltage/current, AC+DC voltage/current, two-wired resistance, capacitance, Frequency/ period, diode and continuity beeper test. Temperature measurement is an optional function for GDM-8342. Many auxiliary functions, such as maximum/minimumvalues, reading hold, relative values, dB, dBm, algorithms (MX+B, 1/X, Ref%) and comparison, are designed to reinforce the major measurement items to satisfy users’ daily working requirements.

Dual measurement/dual display

The GDM-834x series, similar to GW INSTEK’s 6 1/2 and 5 1/2 digits multimeters, equips with dual display to support the possible combinations of measurement items. For example, the DC voltage and current or DC voltage with AC element will appear when monitoring components of test wiring. The results of each measurement will simultaneously appear on different displays that not only save users’ precious time but also exempt users from the trouble of selectingdisplays while reading measurement results.

Command compatibility & Free software-remote control and data retrieving

For GDM-8246 users, the GDM-834x series also provides a complete command compatibility (SYSTEM\LANG\COMP). Users can replace machines through the simple setting of the GDM-834x series without worrying the extra cost to modify the existing program and the delay of production time.

The GDM-834x provides free USB protocol connection software- Excel ADDins for users’ easy access. After installing the software, Microsoft Excel will establish Marco for users to directly control the setting of the GDM-834x series to record the results of the measurements. The recorded data will be synchronously transformed into graphic displays via Excel drawing function that not only eliminates the cost and time of developing programs but also overcomesthe compatibility issue of different programming languages.

제품 사양*1*2

DC 전압

범위*3

분해능

입력 저항

정확도 1년 (23℃±5℃)

500.00mV

10uV

10MΩ or>10GΩ

0.02+4

5.0000V

100uV

10MΩ or>10GΩ

0.02+4

50.000V

1mV

11.1MΩ

0.02+4

500.00V

10mV

10.1MΩ

0.02+4

1000.0V

100mV

10MΩ

0.02+4

저항

범위*3

분해능

테스트 전류

정확도 1년 (23℃±5℃)

500.00Ω

10mΩ

0.83mA

0.10+5*4

5.0000kΩ

100mΩ

0.83mA

0.10+3*4

50.000kΩ

1Ω

83uA

0.10+3

500.00kΩ

10Ω

8.3uA

0.10+3

5.0000MΩ

100Ω

830nA

0.10+3

50.000MΩ

1kΩ

560nA//10MΩ

0.30+3

DC 전류

범위*3

분해능

Burden 전압

정확도 1년 (23℃±5℃)

500.00uA

10nA

최대 0.06V

0.05+5

5.0000mA

100nA

최대 0.6V

0.05+4

50.000mA

1uA

최대 0.14V

0.05+4

500.00mA

10uA

최대 1.4V

0.10+4

5.0000A

100uA

최대 0.5V

0.25+5

10.000A

1mA

최대 0.8V

0.25+5

도통 테스트

범위*3

분해능

테스트 전류

정확도 1년 (23℃±5℃)

5000.0Ω

100mΩ

0.83mA

0.10+5

다이오드 테스트

범위*3

분해능

테스트 전류

정확도 1년 (23℃±5℃)

5.0000V

100uV

0.83mA

0.05+5

커패시턴스

범위*3

분해능

테스트 전류

정확도 1년 (23℃±5℃)

5.000nF

0.5~1nF

0.001nF

8.3uA

2.00+20

1~5nF

0.001nF

8.3uA

2.00+10

50.00nF

5~10nF

0.01nF

8.3uA

2.00+30

10~50nF

0.01nF

8.3uA

2.00+10

500.0nF

0.1nF

83uA

2.00+4

5.000uF

1nF

0.56mA

2.00+4

50.00uF

10nF

0.83mA

2.00+4

True RMS AC (또는AC+DC : AC Coupled) 전압*5*6

범위*3

분해능

주파수

정확도 1년 (23℃±5℃)

500.00mV

10uV

30Hz-50Hz

1.00+40

50Hz-10kHz

0.50+40

10kHz-30kHz

2.00+60

30kHz-100kHz

3.00+120

5.0000V

100uV

30Hz-50Hz

1.00+20

50Hz-10kHz

0.35+15

10kHz-30kHz

1.00+20

30kHz-100kHz

3.00+50

50.000V

1mV

30Hz-50Hz

1.00+20

50Hz-10kHz

0.35+15

10kHz-30kHz

1.00+20

30kHz-100kHz

3.00+50

500.00V

10mV

50Hz-10kHz

0.50+15

10kHz-30kHz

1.00+20

30kHz-100kHz

3.00+50

750.0V

100mV

50Hz-10kHz

0.50+15

True RMS AC (또는AC+DC : AC Coupled) 전류

범위*3

분해능

주파수

정확도 1년 (23℃±5℃)

500.00uA

10nA

30Hz-50Hz

1.50+50

50Hz-2kHz

0.50+40

2kHz-5kHz

1.50+50

5kHz-20kHz

3.00+75

5.0000mA

100nA

30Hz-50Hz

1.50+40

50Hz-2kHz

0.50+20

2kHz-5kHz

1.50+40

5kHz-20kHz

3.00+60

50.000mA

1uA

30Hz-50Hz

1.50+40

50Hz-2kHz

0.50+20

2kHz-5kHz

1.50+40

5kHz-20kHz

3.00+60

500.00mA

10uA

30Hz-50Hz

1.50+40

50Hz-2kHz

0.50+20

2kHz-5kHz

1.50+40

5kHz-20kHz

3.00+60

5.0000A

100uA

30Hz-50Hz

2.00+40

50Hz-2kHz

0.50+30

10.000A

1mA

30Hz-50Hz

2.00+40

50Hz-2kHz

0.50+30

주파수/주기

범위

정확도 1년 (23℃±5℃)

10Hz-500Hz

0.01+5

500Hz-500kHz

0.01+3

500kHz-1MHz

0.01+5

온도(써모커플, GDM-8342)

범위

분해능

타입

정확도*71년 (23℃±5℃)

-200℃~+300℃

0.1℃

J/T/K

2℃

일반

디스플레이

VFD, 2컬러 디스플레이

인터페이스

USB Device, USB Host (GDM-8342)

AC 입력 전원

AC 100V/120V/220V/240V±10%, 50-60Hz

소모 전력 : 최대 15VA

치수 및 무게

265(W) x 107(H) x 302(D)mm, 약2.9kg

*1 모든 사양들은 주 디스플레이에만 적용.

*2 정확도 ±(% ofreadings + digits)

*3 10A 범위를 제외한 모든 범위에서 20% over-range.

*4 REL 기능 ON.

*5 AC+DC 정확도 =AC 정확도 + 10디지트

*6 정현파 입력이 해당범위의 5% 이상일 때의 사양입니다.

*7 상기 사양은 프로브와접점에 의한 정확도를 포함하지 않습니다.

기본 액세서리

안전 지침서 x 1, 전원 코드x 1, 테스트 리드 GTL-207 x 1, 사용 설명서 CD x1

옵션

옵션.01

GPIB 인터페이스

* GPIB 인터페이스는 공장 설치 옵션입니다.

옵션 액세서리

GTL-246

USB 케이블, USB 2.0, A-B 타입,1200mm

14,000원

GTL-248

GPIB 케이블, 2000mm

195,000원

GTL-251

GPIB-USB-HS(High Speed)

1,829,000원

GRA-422

랙 어댑터패널 (19”, 2U)

53,000원

GTL-205

온도 프로브어댑터 (써모커플, K 타입)

33,000원

주문 정보

GDM-8342G

50,000 카운트 듀얼 측정 멀티미터 (USB Host/Device, GPIB)

견적요청

GDM-8342

50,000 카운트 듀얼 측정 멀티미터 (USBHost/Device)

견적요청

GDM-8341

50,000 카운트 듀얼 측정 멀티미터 (USBDevice)

견적요청

옵션

옵션.01

GPIB 인터페이스

견적요청

* GPIB 인터페이스는 공장 설치 옵션입니다.
