Regulated DC Power Supply

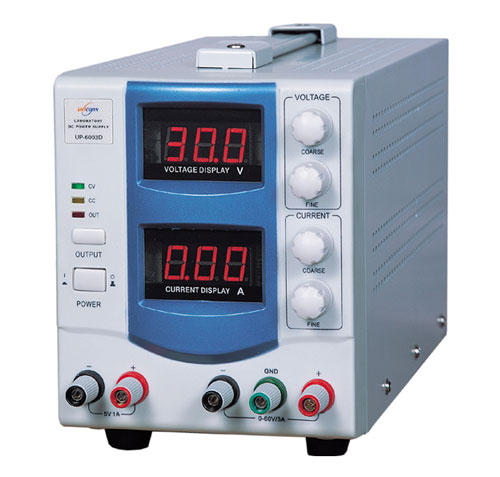

UP-3003D/UP-3005D/UP-6003D
| 저가격형 DC파워서플라이
90W~180W (30V~60V)
■ FEATURE
가변 1채널 + 5V 1A FIXED Channel
HIGH STABILITY & REGULATION
CONSTANT VOLTAGE & CURRENT OUTPUT
OVER LOAD PROTECTED
SMALL SIZE AND SMART TYPE
LABORATORY POWER SUPPLY
DUAL DIGITAL PANEL METER
HIGH EFFICIENCY
HIGH POWER DENSITY
LIGHT AND COMPACT DESIGN
제품설명
라인업
다운로드
▼ SPECIFICATIONS
MODEL
UP-3003D
UP-6003D
UP-3005D
OUTPUT VOLTAGE(CV)
0~30V, 5V(FIXED)
0~60V, 5V(FIXED)
OUTPUT CURRENT(CC)
0~3A, 1A(FIXED)
0~5A, 1A(FIXED)
5V FIX OUTPUT
RIPPLE REJECTION
≤2m Vrms.
Voltage accuracy
±1 %
OUTPUT CURRENT
1A
0.3m Vrms.
0.6 Vrms.
0.5mVrms.
LINE REGULATION
VOLTAGE
≤0.005%+2mV
≤0.02%+2mV
≤0.01%+2mV
CURRENT
0.02%+2mA
LOAD REGULATION
5mA
VOLTAGE RESOLUTION
0.1V
CURRENT RESOLUTION
0.01A
TRANSIENT RECOVERY TIME
100 ㎲ (50%LOAD CHARGE,MINIMUM LOAD 0.5A)
DISPLAYER
3 ½ DIGITAL RANGE DIGITAL DISPLAY
PROTECTION
OVER VOLTAGE
FULL SCALE OF DC OUTPUT VOLTAGE + 9%
OVER CURRENT
FULL SCALE OF DC OUTPUT CURRENT + 9%
TEMPERATURE
ONLY HEAT SINK 85 ℃
OPERATING ENVIRONMENT
0~40 ℃,80%R.H.
AC 110/220V ± 10% , 50/60 ㎐ (CUSTOMER MADE)
ACCESSORIES
INPUT POWER CORD, MANUAL , OUTPUT CABLE
WEIGHT (Kg)
5.6
7.5
7.2
DIMENSION(W*H*D ㎜)
130*165*310
130*165*330
