■ FEATURE

LINEAR TYPE 프로그램 가능한 가변형DC전원공급기

C.V(정전압) & C.C(정전류) MODE OPERATION

 AUTO-SEQUENCE (자동순차, 파형구현 및 반복실행)

 펄스파형, 삼각파형, 계단파형 등 기타 파형 구현 가능

 메모리 저장 및 호출 100 STEP

시간/기울기/전압/전류/반복횟수 설정 및 호출 기능

SEQUENCE GROUP 메모리 기능 (10 GROUP)

OVP 과전압 (임의설정가능), OCP 과전류 보호기능

 OUTPUT ON/OFF FUNCTION

 전압,전류 PRESET FUNCTION

 외부 CALIBRATION 설정 기능

V-SENSING (DROP 전압보상) 기능

4 ⅓  DISPLAY & CONTROL RESOLUTION

HIGH STABILITY & HIGH ACCURACY

LOW RIPPLE & LOW DRIFT

16BIT "V.F.D" DIGITAL DISPLAY 2-LINE

RS-232C / RS-485 인터페이스 기본탑재

GP-IB (IEEE488.2)  INTERFACE FOR PC (옵션)

EXT ANALOG SIGNAL INPUT CONTROL (옵션)

EXT ANALOG SIGNAL OUTPUT MONITORING (옵션)

EXT DC OUTPUT ON-OFF 접점 (1-PULSE) (옵션)

Ext Pulse&Reverse: 바이폴라 ON-OFF 접점 (옵션)

바이폴라 : Pulse & Reverse DC (＋)(－) 정역기능(옵션)

업그레이드 된 안정성을 체험해 보세요
PTDP Series에 적용된 온도 보상 회로 및 실시간 측정 보상 회로에 의해서 장시간 테스트 중 장비의 내부 온도 변화 또는, 외부의 어떤 영향을 받더라도 셋팅된 설정 전압을 유지하며 보다 정확하고 안정적으로 테스트 할 수 있습니다.

정밀한 파워서플라이의 선택 [Remote Voltage Sensing]

자체 출력만을 감지하여 전압을 출력하는 전원 공급기는 사용자가 원하는 만큼 정확하지 않 을 수 있습니다. 케이블 등 부하선의 고유저항성분에 의해 손실되는 전압을 보상 출력하여 더 욱 정밀한 전원공급이 가능합니다. PTDP Series는 Sensing 단자를 통해 사용할 수 있습니다.

이젠 안심하고 쓰세요 [Protection Mode]

PTDP Series에 탑재된 과전압(O.V.P)및 과전류 (O.C.P)모드를 활용하면 과전압 또는 과전류가 출력되었을때 출력을 차단하여 부하원을 보호하고 사용자의 부주의나 장시간의 테스트시에도 안전하게 사용할 수 있으며, 사용자의 부주의로 인한 오작동을 막아 생산라인의 불량률을 줄일 수 있습니다.

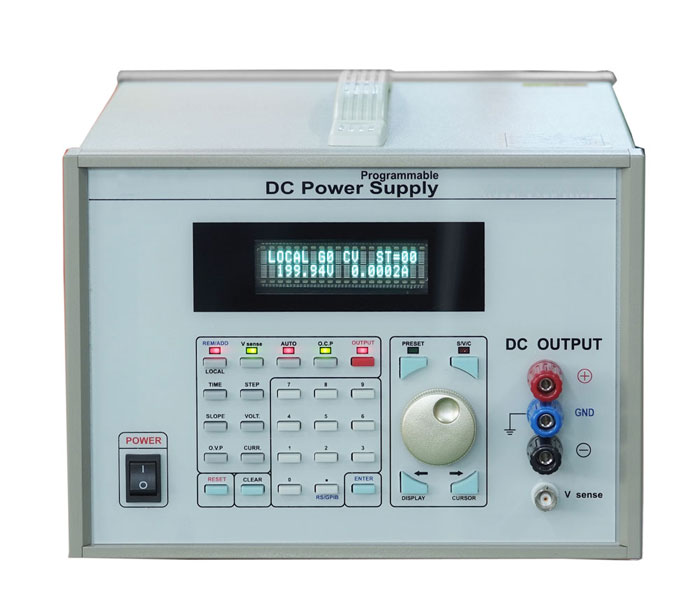

◆90~200Watt PTDP-Series DC Power Supply

    W: 250mm x D:360mm X H: 177mm (4U)

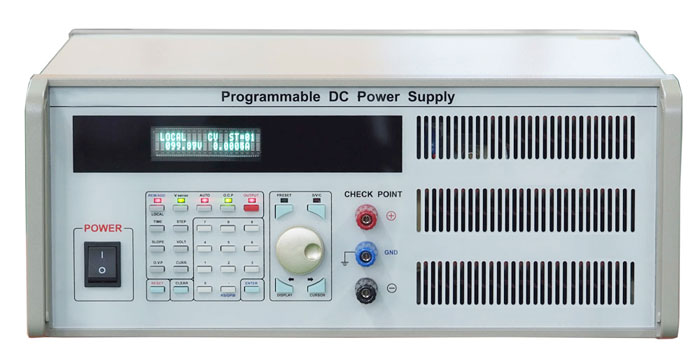

◆300~600Watt PTDP-Series DC Power Supply

   W: 435mm x D:360mm X H: 177mm (19" 4U Rack)

◆750~1000Watt PTDP-Series DC Power Supply

   W: 435mm x D:500mm X H: 177mm (19" 4U Rack)

◆1200~1800Watt PTDP-Series DC Power Supply

   W: 435mm x D:500mm X H: 223mm (19" 5U Rack)

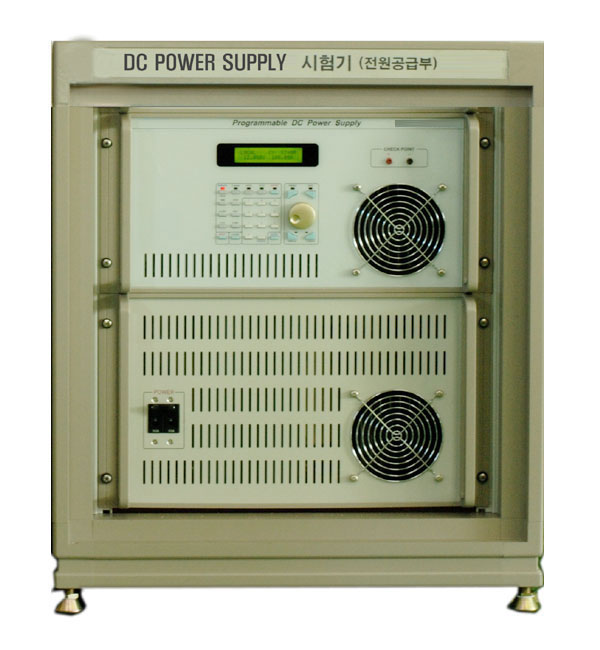

◆2000~4000Watt PTDP-Series DC Power Supply

   W: 600mm x D:650mm X H: 800mm

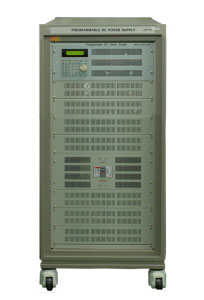

◆5000W~8000Watt PTDP-Series DC Power Supply

   W: 600mm x D:750mm X H: 1200mm

◆9000W~15000Watt PTDP-Series DC Power Supply

   W: 600mm x D:900mm X H: 1600mm

 전압

전류

0~30V

0~50V

0~100V

0~150V

0~200V

0~300V

0~500V

0~1A

-

-

PTDP-1001

PTDP-1501

PTDP-2001

PTDP-3001

PTDP-5001

0~2A

-

-

PTDP-1002

PTDP-1502

PTDP-2002

PTDP-3002

PTDP-5002

0~3A

-

PTDP-503

PTDP-1003

PTDP-1503

PTDP-2003

PTDP-3003

PTDP-5003

0~5A

PTDP-305

PTDP-505

PTDP-1005

PTDP-1505

PTDP-2005

PTDP-3005

PTDP-5005

0~10A

PTDP-3010

PTDP-5010

PTDP-10010

PTDP-15010

PTDP-20010

PTDP-30010

PTDP-50010

0~15A

PTDP-3015

PTDP-5015

PTDP-10015

PTDP-15015

PTDP-20015

PTDP-30015

PTDP-50015

0~20A

PTDP-3020

PTDP-5020

PTDP-10020

PTDP-15020

PTDP-20020

PTDP-30020

-

0~30A

PTDP-3030

PTDP-5030

PTDP-10030

PTDP-15030

PTDP-20030

-

-

0~50A

PTDP-3050

PTDP-5050

PTDP-10050

PTDP-15050

PTDP-20050

-

-

0~100A

PTDP-30100

PTDP-50100

PTDP-100100

PTDP-150100

PTDP-200100

-

-

0~150A

PTDP-30150

PTDP-50150

PTDP-100150

PTDP-150150

PTDP-200150

-

-

0~200A

PTDP-30200

PTDP-50200

PTDP-100200

PTDP-150200

-

-

-

0~300A

PTDP-30300

PTDP-50300

PTDP-100300

-

-

-

-

0~500A

PTDP-30500

PTDP-50500

 -

-

-

-

-

PTDP 150W Series

MODEL

PTDP-305

PTDP-503

PTDP-1501

OUTPUT

30V 5A

50V 3A

150V 1A

OUTPUT

WATT

150W

150W

150W

VOLTAGE(CV)

0 ~ 30V

0 ~ 50V

0 ~ 150V

CURRENT(CC)

0 ~ 5A

0 ~ 3A

0 ~ 1A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.06% + 10㎷

0.06% + 20㎷

0.06% + 80㎷

Current

0.1% + 5㎃

0.1% + 5㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

1.5㎷/10㎷

1.5㎷/12㎷

15㎷/30㎷

Current

10㎃

6㎃

5㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.06% + 15㎷

0.06% + 20㎷

0.06% + 80㎷

Current

0.1%+8㎃

0.1%+6㎃

0.1%+3㎃

LOAD REGULATION

Voltage

7㎷

10㎷

20㎷

Current

5㎃

3㎃

3㎃

LINE REGULATION

Voltage

3㎷

3㎷

20㎷

Current

2㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

0.1㎃

0.1㎃

0.1㎃

WEIGHT (APPROX)

13 Kg

14 Kg

12 Kg

DIMENSION(W*H*D ㎜)

250*177*360

250*177*360

250*200*360

PTDP SERIES 300W

MODEL

PTDP-3010

PTDP-605

PTDP-3001

OUTPUT

30V 10A

60V 5A

300V 1A

OUTPUT

WATT

300W

300W

300W

VOLTAGE(CV)

0 ~ 30V

0 ~ 60V

0~300V

CURRENT(CC)

0 ~ 10A

0 ~ 5A

0~1A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 6㎷

0.04% + 30㎷

0.1% + 150㎷

Current

0.1% + 10㎃

0.1% + 5㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

3㎷/6㎷

6㎷/12㎷

30㎷/90㎷

Current

20㎃

10㎃

6㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 6㎷

0.04% + 30㎷

0.1% + 150㎷

Current

0.1% + 10㎃

0.1% + 5㎃

0.1%+3㎃

LOAD REGULATION

Voltage

3㎷

10㎷

30㎷

Current

10㎃

5㎃

3㎃

LINE REGULATION

Voltage

3㎷

10㎷

30㎷

Current

2㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

1㎃

1㎃

0.1㎃

WEIGHT (APPROX)

27 Kg

27 Kg

25 Kg

DIMENSION(W*H*D ㎜)

432*133*360

432*133*360

432*133*360

PTDP SERIES 500W

MODEL

PTDP-3015

PTDP-5010

PTDP-5001

OUTPUT

30V 15A

50V 10A

500V 1A

OUTPUT

WATT

450W

500W

500W

VOLTAGE(CV)

0 ~ 30V

0 ~ 50V

0~500V

CURRENT(CC)

0 ~ 15A

0 ~ 10A

0~1A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 7㎷

0.04% + 20㎷

0.1% + 300㎷

Current

0.1% + 15㎃

0.1% + 10㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

4㎷/7㎷

5㎷/10㎷

50㎷/150㎷

Current

30㎃

20㎃

6㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 7㎷

0.04% + 20㎷

0.1% + 300㎷

Current

0.1%+15㎃

0.1% + 10㎃

0.1%+3㎃

LOAD REGULATION

Voltage

4㎷

10㎷

100㎷

Current

15㎃

10㎃

3㎃

LINE REGULATION

Voltage

4㎷

10㎷

100㎷

Current

2㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

100㎷

Current

1㎃

1㎃

0.1㎃

WEIGHT (APPROX)

33 Kg

32 Kg

35 Kg

DIMENSION(W*H*D ㎜)

432*177*360

432*177*360

432*177*360

PTDP SERIES 600W

MODEL

PTDP-3020

PTDP-6010

PTDP-3002

OUTPUT

30V20A

60V10A

300V2A

OUTPUT

WATT

600W

600W

600W

VOLTAGE(CV)

0 ~ 30V

0 ~ 60V

0 ~ 300V

CURRENT(CC)

0 ~ 20A

0 ~ 10A

0 ~ 2A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 7㎷

0.04% + 30㎷

0.1% + 150㎷

Current

0.1% + 20㎃

0.1% + 10㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

4㎷/7㎷

6㎷/12㎷

30㎷/90㎷

Current

40㎃

20㎃

6㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 7㎷

0.04% + 30㎷

0.1% + 150㎷

Current

0.1% + 20㎃

0.1% + 10㎃

0.1% + 3㎃

LOAD REGULATION

Voltage

4㎷

10㎷

30㎷

Current

20㎃

10㎃

3㎃

LINE REGULATION

Voltage

4㎷

10㎷

30㎷

Current

2㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

1㎃

1㎃

0.1㎃

WEIGHT (APPROX)

43 Kg

37 Kg

37 Kg

DIMENSION(W*H*D ㎜)

432*177*360

432*177*360

432*177*360

PTDP SERIES 1000W

MODEL

PTDP-3030

PTDP-5020

PTDP-3003

OUTPUT

30V 30A

50V 20A

300V 3A

OUTPUT

WATT

900W

1000W

900W

VOLTAGE(CV)

0 ~ 30V

0 ~ 50V

0 ~ 300V

CURRENT(CC)

0 ~ 30A

0 ~ 20A

0 ~ 3A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 8㎷

0.04% + 20㎷

0.1% + 150㎷

Current

0.1% + 30㎃

0.1% + 20㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

4㎷/8㎷

5㎷/10㎷

30㎷/90㎷

Current

60㎃

40㎃

6㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 8㎷

0.04% + 20㎷

0.1% + 150㎷

Current

0.1%+30㎃

0.1%+20㎃

0.1% + 3㎃

LOAD REGULATION

Voltage

5㎷

10㎷

30㎷

Current

30㎃

20㎃

3㎃

LINE REGULATION

Voltage

5㎷

10㎷

30㎷

Current

3㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

1㎃

1㎃

0.1㎃

WEIGHT (APPROX)

57 Kg

55 Kg

52 Kg

DIMENSION(W*H*D ㎜)

432*177*500

432*177*500

432*177*500

PTDP SERIES 1500W

MODEL

PTDP-3050

PTDP-15010

PTDP-5003

OUTPUT

30V 50A

150V 10A

500V 3A

OUTPUT

WATT

1500W

1500W

1500W

VOLTAGE(CV)

0 ~ 30V

0~150V

0~500V

CURRENT(CC)

0 ~ 50A

0~10A

0~3A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 10㎷

0.06% + 80㎷

0.1% + 300㎷

Current

0.1% + 50㎃

0.1% + 10㎃

0.1% + 3㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

5㎷/10㎷

15㎷/30㎷

50㎷/150㎷

Current

100㎃

20㎃

6㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 10㎷

0.06% + 80㎷

0.1% + 300㎷

Current

0.1%+50㎃

0.1%+10㎃

0.1%+3㎃

LOAD REGULATION

Voltage

7㎷

20㎷

100㎷

Current

50㎃

10㎃

3㎃

LINE REGULATION

Voltage

7㎷

20㎷

100㎷

Current

5㎃

2㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

100㎷

Current

10㎃

1㎃

0.1㎃

WEIGHT (APPROX)

65 Kg

63 Kg

62 Kg

DIMENSION(W*H*D ㎜)

432*222*500

432*222*500

432*222*500

PTDP SERIES 3000W

MODEL

PTDP-30100

PTDP-6050

PTDP-15020

OUTPUT

30V 100A

60V 50A

150V 20A

OUTPUT

WATT

3000W

3000W

3000W

VOLTAGE(CV)

0 ~ 30V

0~60V

0~150V

CURRENT(CC)

0 ~ 100A

0~50A

0~20A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 14㎷

0.04% + 30㎷

0.06% + 80㎷

Current

0.1% + 100㎃

0.1% + 50㎃

0.1% + 20㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

7㎷/14㎷

6㎷/12㎷

15㎷/30㎷

Current

200㎃

100㎃

40㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 14㎷

0.04% + 30㎷

0.06% + 80㎷

Current

0.1%+100㎃

0.1%+50㎃

0.1%+20㎃

LOAD REGULATION

Voltage

11㎷

13㎷

20㎷

Current

100㎃

50㎃

20㎃

LINE REGULATION

Voltage

11㎷

10㎷

20㎷

Current

10㎃

5㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

10㎃

10㎃

1㎃

WEIGHT (APPROX)

125 Kg

129 Kg

120 Kg

DIMENSION(W*H*D ㎜)

600*800*750

600*800*750

600*800*750

PTDP SERIES 6000W

MODEL

PTDP-30200

PTDP-60100

PTDP-30020

OUTPUT

30V 200A

60V 100A

300V 20A

OUTPUT

WATT

6000W

6000W

6000W

VOLTAGE(CV)

0 ~ 30V

0 ~ 60V

0~300V

CURRENT(CC)

0 ~ 200A

0 ~ 100A

0~20A

Programming Accuracy
(At 25℃±5℃)

Voltage

0.04% + 23㎷

0.04% + 30㎷

0.1% + 150㎷

Current

0.1% + 200㎃

0.1% + 100㎃

0.1% + 20㎃

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode
(rms/p-p)

12㎷/23㎷

6㎷/12㎷

30㎷/90㎷

Current

400㎃

200㎃

40㎃

Readback Accuracy
(At 25℃±5℃)

Voltage

0.04% + 23㎷

0.04% + 30㎷

0.1% + 150㎷

Current

0.1%+200㎃

0.1%+100㎃

0.1%+20㎃

LOAD REGULATION

Voltage

12㎷

15㎷

30㎷

Current

200㎃

100㎃

20㎃

LINE REGULATION

Voltage

20㎷

20㎷

30㎷

Current

20㎃

10㎃

2㎃

CONTROL
RESOLUTION

Voltage

1㎷

10㎷

10㎷

Current

10㎃

10㎃

1㎃

WEIGHT (APPROX)

200 Kg

200 Kg

200 Kg

DIMENSION(W*H*D ㎜)

600*1200*750

600*1200*750

600*1200*750

PTDP SERIES

Gegenral Specification

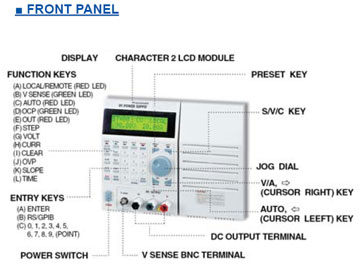

DISPLAYER

VOLTAGE

15BIT VFD DIGITAL DISPLAY x 2LINE

CURRENT

15BIT VFD DIGITAL DISPLAY x 2LINE

PROTECTION
SETTING

OVER VOLTAGE

FULL SCALE OF DC OUTPUT VOLTAGE + 3%

OVER CURRENT

FULL SCALE OF DC OUTPUT CURRENT + 2% (ONLY O.C.P OUTPUT MODE)

TEMPERATURE

ONLY HEAT SINK 85℃

AUTO SEQUENCE

AUTO RUN STEP

LOCAL: MAXIMUM 50 STEP / PC: MAXIMUM 100 STEP

SETTING TIME

1ms ~ 50,000s (Per 10㎲)

SLOPE TIME

1ms ~ 50s (Per 10㎲)

COUNTER

1 ~ 50,000 CYCLE ("0" SET: ∽)

TRANSIENT RECOVERY TIME

100 ㎲  (50%LOAD CHARGE,MINIMUM LOAD 0.5A)

OPERATING ENVIRONMENT

0~50 ℃,80%R.H.

MEMORY ADDRESS

MAX. 100 POINTS (VOLTAGE, CURRENT, TIME, SLOPE)

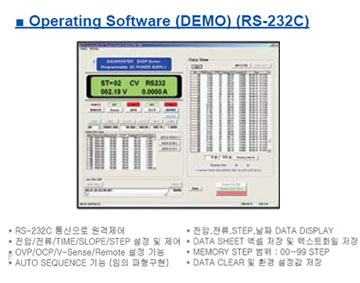

INTERFACE FOR PC

RS-232C, RS-485 Standard  / GP-IB(OPTION)

AC POWER SOURCE

AC 110/220V/380V/440V ± 10% , 50/60 ㎐ (CUSTOMER MADE)

ACCESSORIES

INPUT POWER CORD,MANUAL,OUTPUT CABLE,SOFTWARE CD,RS-232C CABLE

구분

MODEL

DC 출력

SPEC

SHEET

전압(CV)

전류(CC)

WATT

150W 급

PTDP-305

PTDP-503

PTDP-1001

PTDP-1501

PTDP-2001

0~30 V

0~50 V

0~100 V

0~150 V

0~200 V

0~5A

0~3A

0~1A

0~1A

0~1A

150W

150W

100W

150W

200W

300W 급

PTDP-3010

PTDP-505

PTDP-603

PTDP-1502

PTDP-3001

0~30 V

0~50 V

0~100 V

0~150 V

0~300 V

0~10A

0~5A

0~3A

0~2A

0~1A

300W

300W

300W

300W

300W

500W 급

PTDP-3015

PTDP-5010

PTDP-1005

PTDP-1503

PTDP-5001

0~30 V

0~50 V

0~100 V

0~150 V

0~500 V

0~15A

0~10A

0~5A

0~3A

0~1A

450W

500W

500W

450W

500W

600W 급

PTDP-3020

PTDP-6010

PTDP-1006

PTDP-1504

PTDP-3002

0~30 V

0~60 V

0~100 V

0~150 V

0~300 V

0~20A

0~10A

0~6A

0~4A

0~2A

600W

600W

600W

600W

600W

1000W 급

PTDP-3030

PTDP-5020

PTDP-10010

PTDP-1507

PTDP-3003

0~30 V

0~50 V

0~100 V

0~150 V

0~300 V

0~30A

0~20A

0~10A

0~7A

0~3A

900W

1,000W

1,000W

1,050W

900W

1500W 급

PTDP-3050

PTDP-5030

PTDP-10015

PTDP-15010

PTDP-3005

0~30 V

0~50 V

0~100 V

0~150 V

0~300 V

0~50A

0~30A

0~15A

0~10A

0~5A

1,500W

1,500W

1,500W

1,500W

1,500W

3000W 급

PTDP-30100

PTDP-6050

PTDP-10030

PTDP-15020

PTDP-30010

0~30 V

0~50 V

0~100 V

0~150 V

0~300 V

0~100A

0~60A

0~30A

0~20A

0~10A

3,000W

3,000W

3,000W

3,000W

3,000W

6000W 급

PTDP-30200

PTDP-60100

PTDP-10060

PTDP-15040

PTDP-30020

0~30 V

0~60 V

0~100 V

0~150 V

0~300 V

0~200A

0~100A

0~60A

0~40A

0~20A

6,000W

6,000W

6,000W

6,000W

6,000W

10,000W 급

PTDP-30300

PTDP-50200

PTDP-100100

PTDP-15060

PTDP-20050

0~30 V

0~50 V

0~100 V

0~150 V

0~200 V

0~300A

0~200A

0~100A

0~60A

0~50A

9,000W

10,000W

10,000W

9,000W

10,000W

15,000W 급

PTDP-30500

PTDP-50300

PTDP-100150

PTDP-150100

PTDP-20080

0~30 V

0~50 V

0~100 V

0~150 V

0~200 V

0~500A

0~300A

0~150A

0~100A

0~80A

15,000W

15,000W

15,000W

15,000W

16,000W
