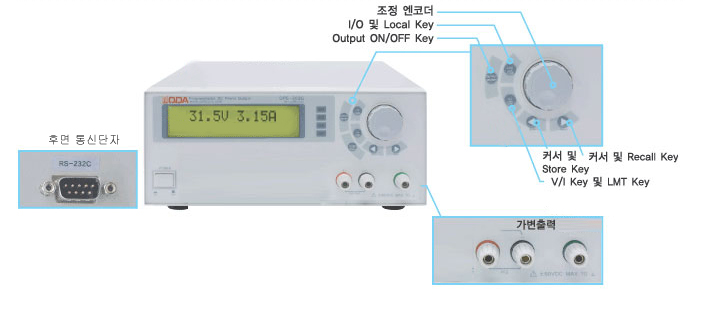

■ FEATURE

저렴한 가격의 Programmable DC Power Supply (Linear Type)

CV / CC 모드 동작

Output ON/OFF 기능 제공

동작상태(전압,전류)를 5개까지 저장(Store) 및 복귀(Recall)

19”Half x 2U 의 슬림한 사이즈 (300W 이하)

3-Digit Digital Display LCD Pannel

RS-232C 기본장착 (RS-485 Option)

External Analog Input / Output Function (OPTION)

OPE Series에 제공되는 통신 인터페이스를 활용해 보세요!

OPE Series는 RS-232C(RS-485 Option)를 제공하고 있습니다.
RS-232C 통신 인터페이스를 통해서 PC 또는 PLC등으로 제어 및 데이터 수집 등 많은 것을 가능하게 합니다.
당사의 제품은 SCPI표준 프로그래밍 언어를 채택하여 프로그래머가 쉽게 Application을 제작할 수 있습니다.
또한 당사에서 제공하는 Application을 이용하면 보다 쉽게 시스템을 구축할 수 있습니다.

■ 용량별 외형 SIZE

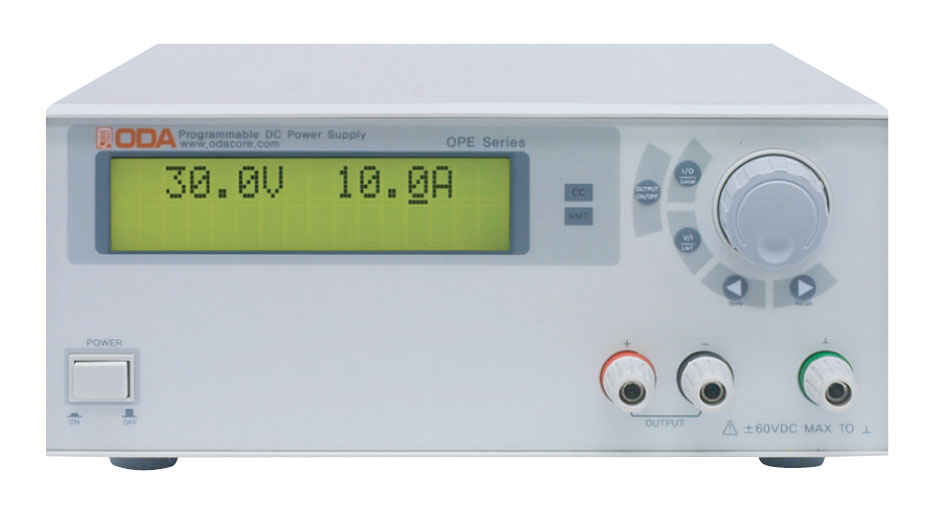

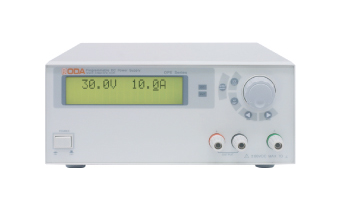

			◆90~300Watt OPE-S Series DC Power Supply // 19" Half 2U Dimension : 19" Half(213mm) Wide, 88mm(H) X 292mm(D)

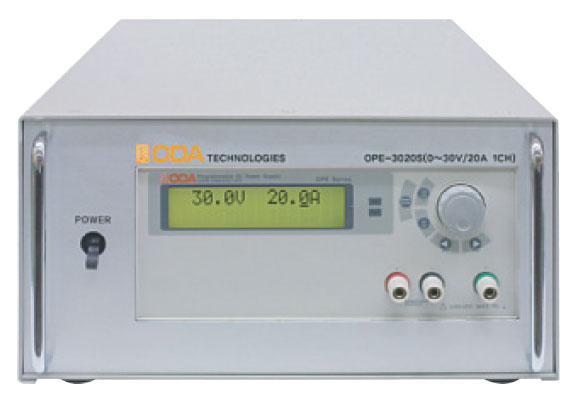

			◆ 300~600Watt OPE-S Series DC Power Supply Dimension : 19" (300mm) Wide, 150mm(H) X 450mm(D)

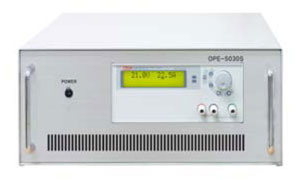

			◆ 600Watt~1.5kW OPE-S Series DC Power Supply // 19" 4U Dimension : 19"(426mm) Wide, 177mm(H) X 505mm(D)
			◆ 1.5kW~2.5kW OPE-S Series DC Power Supply // 19" 5U Dimension : 19"(426mm) Wide, 222mm(H) X 505mm(D)

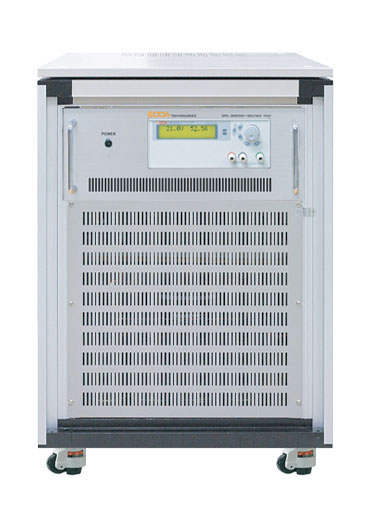

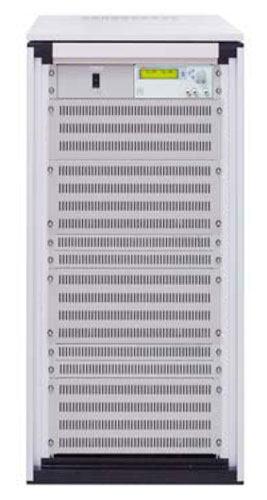

			◆ 2.5kW~40kW OPE-S Series DC Power Supply Dimension : 19" Rack(600mm) Wide, 800~2200mm(H) X 750mm(D)

제품설명

사양/라인업

다운로드

■ SELECT GUIDE (모델명 구성 예 : OPE - 전압 전류 S )

전류▶ 전압▼	3A	5A	10A	20A	30A	50A	100A	200A	500A
9V			OPE-910S	OPE-920S	OPE-930S	OPE-950S	OPE-9100S	OPE-9200S	OPE-9500S
18V	OPE-183S	OPE-185S	OPE-1810S	OPE-1820S	OPE-1830S	OPE-1850S	OPE-18100S	OPE-18200S	OPE-18500S
30V	OPE-303S	OPE-305S	OPE-3010S	OPE-3020S	OPE-3030S	OPE-3050S	OPE-30100S	OPE-30200S	OPE-30500S
50V	OPE-503S	OPE-505S	OPE-5010S	OPE-5020S	OPE-5030S	OPE-5050S	OPE-50100S	OPE-50200S	OPE-50500S
100V	OPE-1003S	OPE-1005S	OPE-10010S	OPE-10020S	OPE-10030S	OPE-10050S	OPE-100100S	OPE-100200S	-
200V	OPE-2003S	OPE-2005S	OPE-20010S	OPE-20020S	OPE-20030S	OPE-20050S	OPE-200100S	-	-
250V	OPE-2503S	OPE-2505S	OPE-25010S	OPE-25020S	OPE-25030S	OPE-25050S	OPE-250100S	-	-
300V	OPE-3003S	OPE-3005S	OPE-30010S	OPE-30020S	OPE-30030S	OPE-30050S	OPE-300100S	-	-
500V	OPE-5003S	OPE-5005S	OPE-50010S	OPE-50020S	OPE-50030S	OPE-50050S	-	-	-

▼ SPECIFICATIONS

Model▶ Parameter▼	OPE-3010S	OPE-3050S	OPE-30100S	OPE-50200S
Output rating	0~30V, 0~10A 1CH	0~30V, 0~50A 1CH	0~30V, 0~100A 1CH	0~50V, 0~200A 1CH
Resolution
Programming/Readback	≤ 7.5mV / ≤ 4mA	≤ 7.5mV / ≤ 15mA	≤ 7.5mV / ≤ 25mA	≤ 15mV / ≤ 50mA
Display Meter	100mV / 100mA	100mV / 100mA	100mV / 1A	100mV / 1A
Programming Accuracy (@25℃ ±5℃)±(%of output + offset)
Voltage	0.2% + 200mV	0.2% + 200mV	0.2% + 200mV	0.2% + 300mV
Current	0.2% + 50mA	0.2% + 250mA	0.2% + 500mA	0.2% + 1A
Read-back Accuracy (@25℃ ±5℃)±(%of output + offset)
Voltage	0.2% + 200mV	0.2% + 200mV	0.2% + 200mV	0.2% + 300mV
Current	0.2% + 50mA	0.2% + 250mA	0.2% + 500mA	0.2% + 1A
Ripple & Noise	≤ 2mVp-p, ≤ 3mArms	≤ 3mVp-p, ≤ 10mArms	≤ 10mVp-p, ≤ 10mArms	≤ 10mVp-p, ≤ 20mArms
Load Regulation	0.01%+4mV, 0.01%+1mA	0.01%+8mV, 0.01%+5mA	0.01%+30mV, 0.01%+10mA	0.01%+50mV, 0.01%+10mA
Line Regulation	0.01%+4mV, 0.01%+1mA	0.01%+8mV, 0.01%+5mA	0.01%+30mV, 0.01%+10mA	0.01%+50mV, 0.01%+10mA
Command Processing Time	＜20ms	＜20ms	＜20ms	＜20ms
Voltage Programming Speed(No load)
Rising time	≤ 120㎳	≤ 120㎳	≤ 120㎳	≤ 120㎳
Falling time	≤3.6s	≤3.6s	≤3.6s	≤3.6s
Transient Response time	Less than 50㎲ for output to recover to within 15mV following a change in output current from full load to half load or vice versa
공통사항	RS-232C attached by default
Option	RS-232C 기본장착 후면출력, 입력전원(AC100,AC110,AC230), RS-485 통신, RS-485 to RS-232C Converter Analog Signal Input, Analog Signal Output, V-Sensing, OVP, OCP 랙마운트 키트, RS-232C Cable
