■ SELECT GUIDE (모델명 구성 예 : LP 용량 - A/ B / C) [A:~60V / B:~250V / C:~500V]

Max 60V DC input	Max 250V DC input	Max 500V DC input	Size
LP300-A	LP250-B	LP200-C	W:213 x D:540 x H:132 mm
(3V~60V , 0~60A , 300W)	(3V~250V , 0~10A , 250W)	(3V~500V , 0~5A , 200W)
LP600-A	LP500-B	LP400-C
(3V~60V , 0~120A , 600W)	(3V~250V , 0~20A , 500W)	(3V~500V , 0~10A , 400W)
LP900-A	LP750-B	LP600-C	W:426 x D:565 x H:132 mm
(3V~60V , 0~180A , 900W)	(3V~250V , 0~30A , 750W)	(3V~500V , 0~15A , 600W)
LP1200-A	LP1000-B	LP800-C
(3V~60V , 0~240A , 1200W)	(3V~250V , 0~40A , 1000W)	(3V~500V , 0~20A , 800W)
LP1500-A	LP1200-B	LP1000-C	W:426 x D:565 x H:176 mm
(3V~60V , 0~300A , 1500W)	(3V~250V , 0~50A , 1200W)	(3V~500V , 0~25A , 1000W)
LP2000-A	LP1500-B	LP1300-C
(3V~60V , 0~400A , 2000W)	(3V~250V , 0~60A , 1500W)	(3V~500V , 0~30A , 1300W)

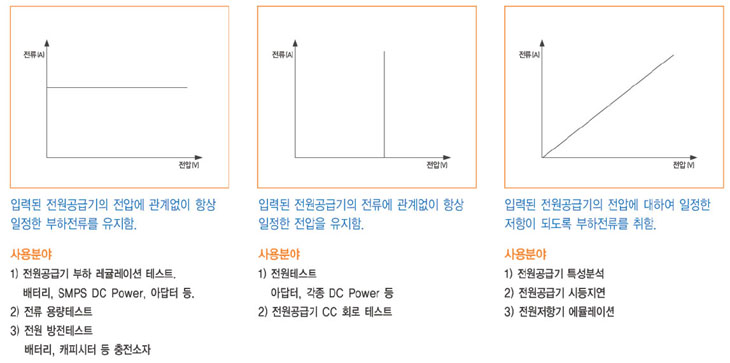

■ SPECIFICATION

▼ 60V / A Type
Model		LP300-A	LP600-A	LP900-A
Output rating		3~60V, 0~60A, 300W	3~60V, 0~120A, 600W	3~60V, 0~180A, 900W
(@0~40℃)		3~60V, 0~60A, 300W	3~60V, 0~120A, 600W	3~60V, 0~180A, 900W
CC Mode	Range	High_0~60A	High_0~120A	High_0~180A
	Range	Low_0~6A	Low_0~12A	Low_0~18A
	Resolution	L:10mA, H:100mA	L:10mA, H:1A	L:10mA, H:1A
	Accuracy	±0.1%±75mA	±0.1%±120mA	±0.1%±180mA
CV Mode	Range	3~60V	3~60V	3~60V
	Resolution	100mV	100mV	100mV
	Accuracy	±0.1%±50mV	±0.1%±50mV	±0.1%±50mV
CR Mode	Range	High_10~6,000Ω	High_5~600Ω	High_3~600Ω
		Mid_1~600Ω	Mid_0.5~60Ω	Mid0.3~60Ω
		Low_0.33~1Ω	Low_0.17~0.5Ω	Low_0.11~0.3Ω
	Accuracy	High&Mid_0.3%±100mΩ	High&Mid_0.3%±100mΩ	High&Mid_0.3%±100mΩ
	Accuracy	Low_0.8%±8mΩ	Low_0.8%±8mΩ	Low_0.8%±8mΩ
Ripple&Noise		4mA(rms) / 40mA(p-p)	8mA(rms) / 80mA(p-p)	12mA(rms) / 120mA(p-p)
Ripple&Noise		6mV(rms)	6mV(rms)	6mV(rms)
Dimensions		213(W)X133(H)X530(D) mm	213(W)X133(H)X530(D)mm	426(W)X133(H)X560(D)mm
Model		LP1200-A	LP1500-A	LP2000-A
Output rating		3~60V, 0~240A, 1200W	3~60V, 0~300A, 1500W	3~60V, 0~400A, 2000W
(@0~40℃)		3~60V, 0~240A, 1200W	3~60V, 0~300A, 1500W	3~60V, 0~400A, 2000W
CC Mode	Range	High_0~240A	High_0~300A	High_0~400A
	Range	Low_0~24A	Low_0~30A	Low_0~40A
	Resolution	L:100mA, H:1A	L:100mA, H:1A	L:100mA, H:1A
	Accuracy	±0.1%±240mA	±0.1%±300mA	±0.1%±400mA
CV Mode	Range	3~60V	3~60V	3~60V
	Resolution	100mV	100mV	100mV
	Accuracy	±0.1%±50mV	±0.1%±50mV	±0.1%±50mV
CR Mode	Range	High_2.5~600Ω	High_2~600Ω	High_1.5~600Ω
		Mid_0.25~60Ω	Mid_0.2~60Ω	Mid0.0.15~60Ω
		Low_0.1~0.25Ω	Low_0.07~0.2Ω	Low_0.06~0.15Ω
	Accuracy	High&Mid_0.3%±100mΩ	High&Mid_0.3%±100mΩ	High&Mid_0.3%±100mΩ
	Accuracy	Low_0.8%±8mΩ	Low_0.8%±8mΩ	Low_0.8%±8mΩ
Ripple&Noise		18mA(rms) / 180mA(p-p)	24mA(rms) / 240mA(p-p)	30mA(rms) / 300mA(p-p)
Ripple&Noise		6mV(rms)	6mV(rms)	6mV(rms)
Dimensions		426(W)X133(H)X560(D)mm	426(W)X176(H)X630(D)mm	426(W)X176(H)X630(D)mm
▼ 250V / B Type
Model		LP250-B	LP500-B	LP750-B
Output rating		3~250V, 0~10A, 250W	3~250V, 0~20A, 500W	3~250V, 0~300A, 750W
(@0~40℃)		3~250V, 0~10A, 250W	3~250V, 0~20A, 500W	3~250V, 0~300A, 750W
CC Mode	Range	High_0~10A	High_0~300A	High_0~400A
	Range	Low_0~1A	Low_0~30A	Low_0~40A
	Resolution	L:10mA, H:100mA	L:10mA, H:100mA	L:10mA, H:100mA
	Accuracy	±0.12%±500mA	±0.12%±500mA	±0.12%±500mA
CV Mode	Range	3~250V	3~250V	3~250V
	Resolution	1V	1V	1V
	Accuracy	±0.12%±500mV	±0.12%±500mV	±0.12%±500mV
CR Mode	Range	High_240~20,000	High_120~20,000	High_80~20,000
		Mid_24~2,000	Mid_12~2,000	Mid_8~2,000
		Low_0.2~24	Low_0.1~12	Low_0.07~8
	Accuracy	High&Mid_0.3%±1m	High&Mid_0.3%±1m	High&Mid_0.3%±1m
	Accuracy	Low_0.8%±200m	Low_0.8%±200m	Low_0.8%±200m
Ripple&Noise		1mA(rms) / 10mA(p-p)	2mA(rms) / 20mA(p-p)	3mA(rms) / 30mA(p-p)
Ripple&Noise		6mV(rms)	6mV(rms)	6mV(rms)
Dimensions		213(W)X133(H)X530(D)mm	213(W)X133(H)X530(D)mm	426(W)X133(H)X560(D)mm
Model		LP1000-B	LP1200-B	LP1600-B
Output rating		3~250V, 0~40A, 1000W	3~250V, 0~48A, 1200W	3~250V, 0~64A, 1600W
(@0~40℃)		3~250V, 0~40A, 1000W	3~250V, 0~48A, 1200W	3~250V, 0~64A, 1600W
CC Mode	Range	High_0~40A	High_0~48A	High_0~64A
	Range	Low_0~4A	Low_0~4.8A	Low_0~6.4A
	Resolution	L:10mA, H:100mA	L:10mA, H:1A	L:10mA, H:1A
	Accuracy	±0.15%±40mA	±0.15%±48mA	±0.15%±64mA
CV Mode	Range	3~250V	3~250V	3~250V
	Resolution	1V	1V	1V
	Accuracy	±0.12%±500mV	±0.12%±500mV	±0.12%±500mV
CR Mode	Range	High_60~20,000	High_50~20,000	High_38~20,000
		Mid_6~2,000	Mid_5~2,000	Mid3.8~2,000
		Low_0.05~6	Low_0.042~5	Low_0.03~3.8Ω
	Accuracy	High&Mid_0.3%±1	High&Mid_0.3%±1	High&Mid_0.3%±1
	Accuracy	Low_0.8%±200m	Low_0.8%±200m	Low_0.8%±200m
Ripple&Noise		4mA(rms) / 40mA(p-p)	4.8mA(rms) / 48mA(p-p)	6.4mA(rms) / 64mA(p-p)
Ripple&Noise		6mV(rms)	6mV(rms)	6mV(rms)
Dimensions		426(W)X133(H)X560(D)mm	426(W)X176(H)X630(D)mm	426(W)X176(H)X630(D)mm
▼ 500V / C Type
Model		LP200-C	LP400-C	LP600-C
Output rating		3~500V, 0~5A, 200W	3~500V, 0~10A, 400W	3~500V, 0~15A, 600W
(@0~40℃)		3~500V, 0~5A, 200W	3~500V, 0~10A, 400W	3~500V, 0~15A, 600W
CC Mode	Range	High_0~5A	High_0~10A	High_0~15A
	Range	Low_0~0.5A	Low_0~1A	Low_0~1.5A
	Resolution	L:1mA, H:10mA	L:10mA, H:100mA	L:10mA, H:100mA
	Accuracy	±0.15%±5mA	±0.15%±10mA	±0.15%±15mA
CV Mode	Range	3~500V	3~500V	3~500V
	Resolution	1V	1V	1V
	Accuracy	±0.15%±500mV	±0.15%±500mV	±0.1%±500mV
CR Mode	Range	High_1,000~100,000Ω	High_500~50,000Ω	High_333~50,000Ω
		Mid_100~10,000Ω	Mid_50~5,000Ω	Mid_33~5,000Ω
		Low_0.4~100Ω	Low_0.2~50Ω	Low_0.14~33Ω
	Accuracy	High&Mid_0.3%±5mΩ	High&Mid_0.3%±1mΩ	High&Mid_0.3%±1Ω
	Accuracy	Low_0.8%±500mΩ	Low_0.8%±200mΩ	Low_0.8%±200mΩ
Ripple&Noise		0.5mA(rms) / 5mA(p-p)	1mA(rms) / 10mA(p-p)	1.5mA(rms) / 15mA(p-p)
Ripple&Noise		10 mV(rms)	10 mV(rms)	10 mV(rms)
Dimensions		213(W)X133(H)X530(D)mm	213(W)X133(H)X530(D)mm	426(W)X133(H)X560(D)mm
Model		LP800-C	LP1000-C	LP600-C
Output rating		3~250V, 0~20A, 800W	3~250V, 0~25A, 1000W	3~250V, 0~30A, 1300W
(@0~40℃)		3~250V, 0~20A, 800W	3~250V, 0~25A, 1000W	3~250V, 0~30A, 1300W
CC Mode	Range	High_0~20A	High_0~25A	High_0~30A
	Range	Low_0~2A	Low_0~2.5A	Low_0~6.4A
	Resolution	L:10mA, H:100mA	L:10mA, H:100mA	L:10mA, H:100mA
	Accuracy	±0.15%±200mA	±0.15%±25mA	±0.15%±64mA
CV Mode	Range	3~500V	3~500V	3~500V
	Resolution	1V	1V	1V
	Accuracy	±0.15%±500mV	±0.15%±500mV	±0.15%±500mV
CR Mode	Range	High_250~50,000Ω	High_200~50,000Ω	High_167~50,000Ω
		Mid_25~5,000Ω	Mid_20~5,000Ω	Mid_16.7~5,000Ω
		Low_0.1~25Ω	Low_0.08~20Ω	Low_0.067~16.7Ω
	Accuracy	High&Mid_0.3%±1Ω	High&Mid_0.3%±1Ω	High&Mid_0.3%±1Ω
	Accuracy	Low_0.8%±200mΩ	Low_0.8%±200mΩ	Low_0.8%±200mΩ
Ripple&Noise		1mA(rms) / 10mA(p-p)	2mA(rms) / 20mA(p-p)	3mA(rms) / 30mA(p-p)
Ripple&Noise		6mV(rms)	6mV(rms)	6mV(rms)
Dimensions		426(W)X133(H)X560(D)mm	427(W)X176(H)X630(D)mm	426(W)X176(H)X630(D)mm

■ 공통사양

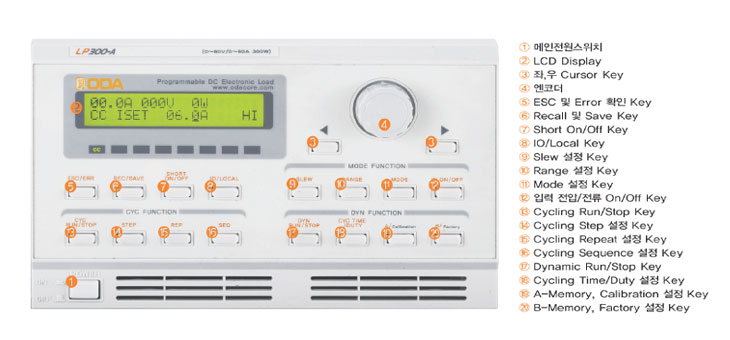

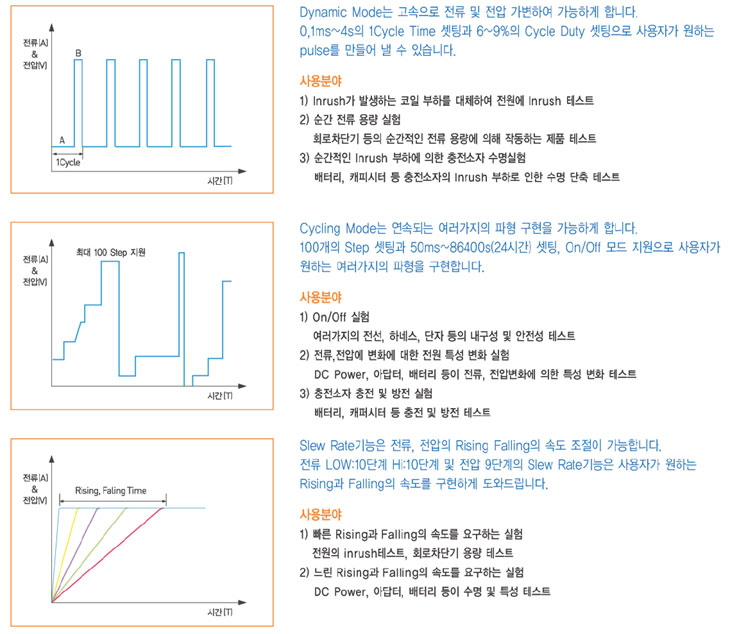

Cycling Mode	Max 100Step / 50ms~86400s DelayTtime / CC, CV Mode 지원
Dynamic Mode	A, B 2CH Memory / 0.1ms~4s Cycle Time / 6~94% Cycle Duty / CC, CV Mode 지원
Slew Rate	CC Mode-Low: 10단계, Hi: 10단계 / Mode: 9단계
Protection	OVP, OPP, OTP (Heatsink Temp 105℃)
Analog In / Output	Voltage, current Analog output (0~10V) / Remote Sensing (5Vdc between sensing (5Vdc beetween sense and load input)
Remote Interface	RS-232 & 485 & USB
