	Home > DC전자로드 >
	Programmable DC Electronic Load

ELTO "S" - Series

| CC,CV,CR,CP MODE OPERATION

200W~20KW

■ FEATURE

CC,CR,CV,CP OPERATION MODE

OVP,OCP,OPP,OTP,RPP PROTECTION

4-DIGIT AUTO RANGE DISPLAY

HIGH ACCURACY

PORTABLE TYPE SINGLE LOAD or RACK TYPE

DYNAMIC,STATIC,EXTERNAL FUNTION MODE

24BIT A/D CONVERTER

RS-232C(RS-485) For Interface

POWER MOSFET

ACTIVE POWER DISSIPATION BALANCE

■ APPLICATIONS

전압,전류 전원 테스트

전원공급기 TRANSIENT RESPONSE

전류 LIMIT 테스트

BATTERY EMULATION BY USING CV MODE

BATTERY 방전 테스트

R&D , QUALITY CONTROL, ATE SYSTEM

전원공급장치 LOAD REGULATION

제품설명

사양/라인업

다운로드

■ 전면 / 후면 설명 (200W/300W 기준)

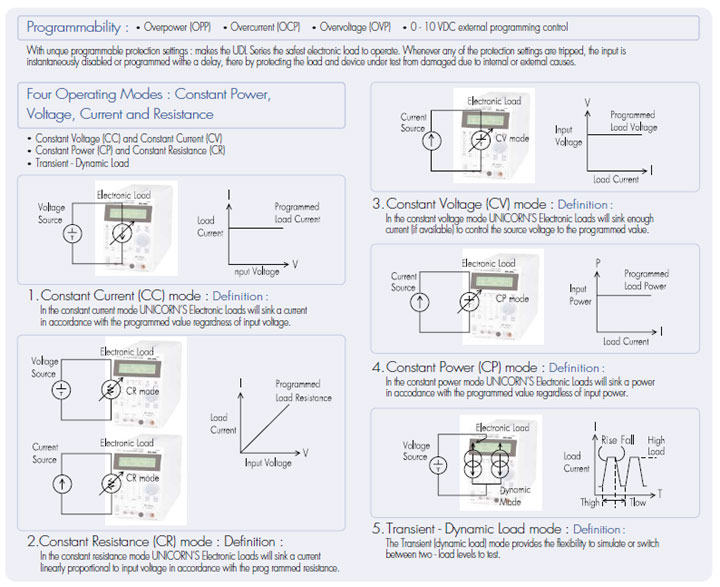

■ 주요기능

■ 용량별 SIZE

	200W / 300W	W:140 x H:200x D:400mm
	600W	W:250 x H:200x D:450mm
	1200W	W:432 x H:177x D:500mm
	2400W	W:432 x H:355x D:500mm
	5KW	W:500 x H:720x D:700mm
	10KW	W:500 x H:1400x D:700mm

제품설명

사양/라인업

다운로드

■ SELECT GUIDE

DC Input Watt	80Vdc		250Vdc		500Vdc
DC Input Watt	Model	Current	Model	Current	Model	Current
200W	SL-200	40A	SM-200	20A	SH-200	10A
300W	SL-300	60A	SM-300	30A	SH-300	15A
600W	SL-600	120A	SM-600	60A	SH-600	30A
1200W	SL-1200	240A	SM-1200	120A	SH-1200	60A
2400W	SLL-2400	240A	SML-2400	120A	SHL-2400	60A
2400W	SLH-2400	480A	SMH-2400	240A	SHH-2400	120A
5000W	SLL-5000	500A	SML-5000	250A	SHL-5000	120A
5000W	SLH-5000	1000A	SMH-5000	500A		-
10KW	SLL-10K	500A	SML-10K	500A	SHL-10K	250A
10KW	SLH-10K	1000A	SMH-10K	1000A		-

■ SPECIFICATIONS

▼ 200Watt
SPECIFICATION			ELTO SL-200	ELTO SM-200	ELTO SH-200
OPERATING RANGE	POWER		200W	200W	200W
	VOLTAGE		1.0~80V	2~250V	4~500V
	CURRENT		0~40A	0~20A	0~10A
	MIN. OPERATING VOLTAGE		1.0V at 40A	2V at 20A	4V at 10A
MODE	CC	RANGE	0~10A/10~40A	0~10A/10~20A	0~10A
		RESOLUTION	1mA/10mA	1mA/10mA	1mA
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S	0.06%+0.2%F.S
	CV	RANGE	0.05~80V	0.05~100V/100~250V	0.05~100V/100~500V
		RESOLUTION	10mV	10mV/100mV	10mV/100mV
		ACCURACY	0.08%+0.1%F.S	0.08%+0.1%F.S	0.08%+0.1%F.S
	CP	RANGE	0~100W/100~200W	0~100W/100~200W	0~100W/100~200W
		RESOLUTION	10mW/100mW	10mW/100mW	10mW/100mW
		ACCURACY	0.5%+0.5%F.S	0.5%+0.5%F.S	0.5%+0.5%F.S
	CR	RANGE	0.12~10Ω/10~100Ω/ 100~1000Ω/1000~8000Ω	0.5~10Ω/10~100Ω/ 100~1000Ω/1000~9000Ω	2~10Ω/10~100Ω/ 100~1000Ω/1000~9000Ω
		RESOLUTION	1mΩ/10mΩ/100m Ω/1Ω	1mΩ/10mΩ/100m Ω/1Ω	1mΩ/10mΩ/100m Ω/1Ω
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S	0.06%+0.2%F.S
FUNCTION	LOAD ON DELAY TIME		1ms~5000ms	1ms~5000ms	1ms~5000ms
	DYNAMIC	MEMORY	3CH(T1,T2,T3)	3CH(T1,T2,T3)	3CH(T1,T2,T3)
		TIME	100㎲~1s/1~5s	100㎲~1s/1~5s	100㎲~1s/1~5s
		RESOLUTION	100㎲/1㎳	100㎲/1㎳	100㎲/1㎳
		SLEW RATE	0.001~2A/㎲	0.001~1A/㎲	0.001~0.5A/㎲
		RESOLUTION	0.001A/㎲	0.001A/㎲	0.001A/㎲
		CURRENT	0~10A/10~40A	0~10A/10~20A	0~10A
		RESOLUTION	1mA/10mA	1mA/10mA	1mA
VOLTAGE READ BACK		RANGE	0~10V/10~80V	0~10V/10~100V/100~250V	0~10V/10~100V/100~500V
		RESOLUTION	1mV/10mV	10mV/100mV	10mV/100mV
		ACCURACY	0.05%+0.1%F.S	0.05%+0.1%F.S	0.05%+0.1%F.S
CURRENT READ BACK		RANGE	0~10A/10~40A	0~10A/10~20A	0~10A
		RESOLUTION	1mA/10mA	1mA/10mA	1mA
		ACCURACY	0.1%+0.1%F.S	0.1%+0.1%F.S	0.1%+0.1%F.S
PROTECTION		OPP(POWER)	208W	208W	208W
		OVP(VOLTAGE)	81.6V	255V	510V
		OCP(CURRENT)	40.8A	20.4A	10.2A
		OTP(TEMPER)	85℃	85℃	85℃
INPUT RESISTANCE(LOAD OFF)			2㏁	2㏁	2㏁
V SENSE			0~80V	0~250V	0~500V
I MONITOR			0~10V/0~40A	0~10V/0~20A	0~10V/0~10A
EXTERNAL MODE			0~10V/0~40A	0~10V/0~20A	0~10V/0~10A
PC INTERFACE			RS-232/RS-485	RS-232/RS-485	RS-232/RS-485
WEIGHT (APPROX)			9 kg	9 kg	9 kg
DIMENSION(WxHxD)mm			140 x 200 x 400	140 x 200 x 400	140 x 200 x 400
▼ 300Watt
MODEL			ELTO SL-300	ELTO SM-300	ELTO SH-300
OPERATING RANGE	POWER		300W	300W	300W
	VOLTAGE		1.0~80V	2~250V	4~500V
	CURRENT		0~60A	0~30A	0~15A
	MIN. OPERATING VOLTAGE		1.0V at 60A	2V at 30A	4V at 15A
MODE	CC	RANGE	0~10A/10~60A	0~10A/10~30A	0~10A/10~15A
		RESOLUTION	1mA/10mA	1mA/10mA	1mA/10mA
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S	0.06%+0.2%F.S
	CV	RANGE	0.05~80V	0.05~100V/100~250V	0.05~100V/100~500V
		RESOLUTION	10mV	10mV/100mV	10mV/100mV
		ACCURACY	0.08%+0.1%F.S	0.08%+0.1%F.S	0.08%+0.1%F.S
	CP	RANGE	0~100W/100~300W	0~100W/100~300W	0~100W/100~300W
		RESOLUTION	10mW/100mW	10mW/100mW	10mW/100mW
		ACCURACY	0.5%~0.5%F.S	0.5%+0.5%F.S	0.5%+0.5%F.S
	CR	RANGE	0.08~10Ω/10~100Ω/ 100~1000Ω/1000~8000Ω	0.33~10Ω/10~100Ω/ 100~1000Ω/1000~9000Ω	1.33~10Ω/10~100Ω/ 100~1000Ω/1000~9000Ω
		RESOLUTION	1mΩ/10mΩ/100m Ω/1Ω	1mΩ/10mΩ/100m Ω/1Ω	1mΩ/10mΩ/100m Ω/1Ω
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S	0.06%+0.2%F.S
FUNCTION	LOAD ON DELAY TIME		1ms~5000ms	1ms~5000ms	1ms~5000ms
	DYNAMIC	MEMORY	3CH(T1,T2,T3)	3CH(T1,T2,T3)	3CH(T1,T2,T3)
		TIME	100㎲~1s/1~5s	100㎲~1s/1~5s	100㎲~1s/1~5s
		RESOLUTION	100㎲/1㎳	100㎲/1㎳	100㎲/1㎳
		SLEW RATE	0.001~3A/㎲	0.001~1.5A/㎲	0.001~0.75A/㎲
		RESOLUTION	0.001A/㎲	0.001A/㎲	0.001A/㎲
		CURRENT	0~10A/10~60A	0~10A/10~30A	0~10A/10~15A
		RESOLUTION	1mA/10mA	1mA/10mA	1mA/10mA
VOLTAGE READ BACK		RANGE	0~10V/10~80V	0~10V/10~100V/100~250V	0~10V/10~100V/100~500V
		RESOLUTION	1mV/10mV	10mV/100mV	10mV/100mV
		ACCURACY	0.05%+0.1%F.S	0.05%+0.1%F.S	0.05%+0.1%F.S
CURRENT READ BACK		RANGE	0~10A/10~60A	0~10A/10~30A	0~10A/10~15A
		RESOLUTION	1mA/10mA	1mA/10mA	1mA/10mA
		ACCURACY	0.1%+0.1%F.S	0.1%+0.1%F.S	0.1%+0.1%F.S
PROTECTION		OPP(POWER)	312W	312W	312W
		OVP(VOLTAGE)	81.6V	255V	510V
		OCP(CURRENT)	61.2A	30.6A	15.3A
		OTP(TEMPER)	85℃	85℃	85℃
INPUT RESISTANCE(LOAD OFF)			2㏁	2㏁	2㏁
V SENSE			0~80V	0~250V	0~500V
I MONITOR			0~10V/0~60A	0~10V/0~30A	0~10V/0~15A
EXTERNAL MODE			0~10V/0~60A	0~10V/0~30A	0~10V/0~15A
PC INTERFACE			RS-232/RS-485	RS-232/RS-485	RS-232/RS-485
WEIGHT (APPROX)			9 kg	9 kg	9 kg
DIMENSION(WxHxD)mm			140 x 200 x 400	140 x 200 x 400	140 x 200 x 400
▼ 600Watt
ITEM			ELTO SL-600	ELTO SM-600	ELTO SH-600
OPERATING RANGE	POWER		600W	600W	600W
	VOLTAGE		1.0~80V	2~250V	4~500V
	CURRENT		0~120A	0~60A	0~30A
	MIN. OPERATING VOLTAGE		1.0V at 120A	2V at 60A	4V at 30A
MODE	CC	RANGE	0~100A/100~120A	0~10A/10~60A	0~10A/10~30A
		RESOLUTION	10mA/100mA	1mA/10mA	1mA/10mA
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S	0.06%+0.2%F.S
	CV	RANGE	0.05~80V	0.05~100V/100~250V	0.05~100V/100~500V
		RESOLUTION	10mV	10mV/100mV	10mV/100mV
		ACCURACY	0.08%+0.1%F.S	0.08%+0.1%F.S	0.08%+0.1%F.S
	CP	RANGE	0~100W/100~600W	0~100W/100~600W	0~100W/100~600W
		RESOLUTION	10mW/100mW	10mW/100mW	10mW/100mW
		ACCURACY	0.5%+0.5%F.S	0.5%~0.5%F.S	0.5%+0.5%F.S
	CR	RANGE	0.04~10Ω/10~100Ω/ 100~1000Ω/1000~8000Ω	0.16~10Ω/10~100Ω/ 100~1000Ω/1000~9000Ω	0.66~10Ω/10~100Ω/ 100~1000Ω/1000~9000Ω
		RESOLUTION	1mΩ/10mΩ/100m Ω/1Ω	1mΩ/10mΩ/100mΩ/1Ω	1mΩ/10mΩ/100mΩ/1Ω
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S	0.06%+0.2%F.S
FUNCTION	LOAD ON DELAY TIME		1ms~5000ms	1ms~5000ms	1ms~5000ms
	DYNAMIC	MEMORY	3CH(T1,T2,T3)	3CH(T1,T2,T3)	3CH(T1,T2,T3)
		TIME	100㎲~1s/1~5s	100㎲~1s/1~5s	100㎲~1s/1~5s
		RESOLUTION	100㎲/1㎳	100㎲/1㎳	100㎲/1㎳
		SLEW RATE	0.001~6A/㎲	0.001~3A/㎲	0.001~1.5A/㎲
		RESOLUTION	0.001A/㎲	0.001A/㎲	0.001A/㎲
		CURRENT	0~100A/100~120A	0~10A/10~60A	0~10A/10~30A
		RESOLUTION	10mA/100mA	1mA/10mA	1mA/10mA
VOLTAGE READ BACK		RANGE	0~10V/10~80V	0~10V/10~100V/100~250V	0~10V/10~100V/100~500V
		RESOLUTION	1mV/10mV	10mV/100mV	10mV/100mV
		ACCURACY	0.05%+0.1%F.S	0.05%+0.1%F.S	0.05%+0.1%F.S
CURRENT READ BACK		RANGE	0~10A/10~100A/100~120A	0~10A/10~60A	0~10A/10~30A
		RESOLUTION	10mA/100mA	1mA/10mA	1mA/10mA
		ACCURACY	0.1%+0.1%F.S	0.1%+0.1%F.S	0.1%+0.1%F.S
PROTECTION		OPP(POWER)	624W	624W	624W
		OVP(VOLTAGE)	81.6V	255V	510V
		OCP(CURRENT)	122.4A	61.2A	30.6A
		OTP(TEMPER)	85℃	85℃	85℃
INPUT RESISTANCE(LOAD OFF)			2㏁	2㏁	2㏁
V SENSE			0~80V	0~250V	0~500V
I MONITOR			0~10V/0~120A	0~10V/0~60A	0~10V/0~30A
EXTERNAL MODE			0~10V/0~120A	0~10V/0~60A	0~10V/0~30A
PC INTERFACE			RS-232/RS-485	RS-232/RS-485	RS-232/RS-485
WEIGHT (APPROX)			13 kg	13 kg	13 kg
DIMENSION(WxHxD)mm			250 x 200 x 450	250 x 200 x 450	250 x 200 x 450
▼ 1200Watt
ITEM			ELTO SL-1.2K	ELTO SM-1.2K	ELTO SH-1.2K
OPERATING RANGE	POWER		1.2KW	1.2KW	1.2KW
	VOLTAGE		1.0~80V	2~250V	4~500V
	CURRENT		0~240A	0~120A	0~60A
	MIN. OPERATING VOLTAGE		1.0V at 240A	2V at 120A	4V at 60A
MODE	CC	RANGE	0~100A/100~240A	0~100A/100~120A	0~10A/10~60A
		RESOLUTION	10mA/100mA	10mA/100mA	1mA/10mA
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S	0.06%+0.2%F.S
	CV	RANGE	0.05~80V	0.05~100V/100~250V	0.05~100V/100~500V
		RESOLUTION	10mV	10mV/100mV	10mV/100mV
		ACCURACY	0.08%+0.1%F.S	0.08%+0.1%F.S	0.08%+0.1%F.S
	CP	RANGE	0~100W/100~1000W /1000~1200W	0~100W/100~1000W/ 1000~1200W	0~100W/100~1000W/ 1000~1200W
		RESOLUTION	10mW/100mW/1W	10mW/100mW/1W	10mW/100mW/1W
		ACCURACY	0.5%+0.5%F.S	0.5%+0.5%F.S	0.5%~0.5%F.S
	CR	RANGE	0.02~10Ω/10~100Ω/ 100~800Ω	0.08~10Ω/10~100Ω/ 100~1000Ω/1000~9000Ω	0.33~10Ω/10~100Ω/ 100~1000Ω/1000~9000Ω
		RESOLUTION	1mΩ/10mΩ/100m Ω	1mΩ/10mΩ/100mΩ/1Ω	1mΩ/10mΩ/100mΩ/1Ω
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S	0.06%+0.2%F.S
FUNCTION	LOAD ON DELAY TIME		1ms~5000ms	1ms~5000ms	1ms~5000ms
	DYNAMIC	MEMORY	3CH(T1,T2,T3)	3CH(T1,T2,T3)	3CH(T1,T2,T3)
		TIME	100㎲~1s/1~5s	100㎲~1s/1~5s	100㎲~1s/1~5s
		RESOLUTION	100㎲/1㎳	100㎲/1㎳	100㎲/1㎳
		SLEW RATE	0.001~12A/㎲	0.001~6A/㎲	0.001~3A/㎲
		RESOLUTION	0.001A/㎲	0.001A/㎲	0.001A/㎲
		CURRENT	0~100A/100~240A	0~100A/100~120A	0~10A/10~60A
		RESOLUTION	10mA/100mA	10mA/100mA	1mA/10mA
VOLTAGE READ BACK		RANGE	0~10V/10~80V	0~10V/10~100V/100~250V	0~10V/10~100V/100~500V
		RESOLUTION	1mV/10mV	10mV/100mV	10mV/100mV
		ACCURACY	0.05%+0.1%F.S	0.05%+0.1%F.S	0.05%+0.1%F.S
CURRENT READ BACK		RANGE	0~10A/10~100A/100~240A	0~10A/10~100A/100~120A	0~10A/10~60A
		RESOLUTION	10mA/100mA	10mA/100mA	1mA/10mA
		ACCURACY	0.1%+0.1%F.S	0.1%+0.1%F.S	0.1%+0.1%F.S
PROTECTION		OPP(POWER)	1248W	1248W	1248W
		OVP(VOLTAGE)	81.6V	255V	510V
		OCP(CURRENT)	244.8A	122.4A	61.2A
		OTP(TEMPER)	85℃	85℃	85℃
INPUT RESISTANCE(LOAD OFF)			2㏁	2㏁	2㏁
V SENSE			0~80V	0~250V	0~500V
I MONITOR			0~10V/0~240A	0~10V/0~120A	0~10V/0~60A
EXTERNAL MODE			0~10V/0~240A	0~10V/0~120A	0~10V/0~60A
PC INTERFACE			RS-232/RS-485	RS-232/RS-485	RS-232/RS-485
WEIGHT (APPROX)			31 kg	31 kg	31 kg
DIMENSION(WxHxD)mm			420 x 200 x 500	420 x 200 x 500	420 x 200 x 500

▼ 2400Watt
ITEM			ELTO SLL-2.4K	ELTO SLH-2.4K
OPERATING RANGE	POWER		2.4KW	2.4KW
	VOLTAGE		1.0~80V	1.0~80V
	CURRENT		0~240A	0~480A
	MIN. OPERATING VOLTAGE		1.0V at 240A	1.0V at 480A
MODE	CC	RANGE	0~100A/100~240A	0~100A/100~480A
		RESOLUTION	10mA/100mA	10mA/100mA
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
	CV	RANGE	0.05~80V	0.05~80V
		RESOLUTION	10mV	10mV
		ACCURACY	0.08%+0.1%F.S	0.08%+0.1%F.S
	CP	RANGE	0~100W/100~1000W/1000~2400W	0~100W/100~1000W/1000~2400W
		RESOLUTION	10mW/100mW/1W	10mW/100mW/1W
		ACCURACY	0.5%+0.5%F.S	0.5%+0.5%F.S
	CR	RANGE	0.04~10Ω/10~100Ω/100~800Ω	0.01~10Ω/10~100Ω/ 100~800Ω
		RESOLUTION	1mΩ/10mΩ/100m Ω	1mΩ/10mΩ/100m Ω
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
FUNCTION	LOAD ON DELAY TIME		1ms~5000ms	1ms~5000ms
	DYNAMIC	MEMORY	3CH(T1,T2,T3)	3CH(T1,T2,T3)
		TIME	100㎲~1s/1~5s	100㎲~1s/1~5s
		RESOLUTION	100㎲/1㎳	100㎲/1㎳
		SLEW RATE	0.001~12A/㎲	0.001~24A/㎲
		RESOLUTION	0.001A/㎲	0.001A/㎲
		CURRENT	0~100A/100~240A	0~100A/100~480A
		RESOLUTION	10mA/100mA	10mA/100mA
VOLTAGE READ BACK		RANGE	0~10V/10~80V	0~10V/10~80V
		RESOLUTION	1mV/10mV	1mV/10mV
		ACCURACY	0.05%+0.1%F.S	0.05%+0.1%F.S
CURRENT READ BACK		RANGE	0~10A/10~100A/100~240A	0~10A/10~100A/100~480A
		RESOLUTION	10mA/100mA	10mA/100mA
		ACCURACY	0.1%+0.1%F.S	0.1%+0.1%F.S
PROTECTION		OPP(POWER)	2496W	2496W
		OVP(VOLTAGE)	81.6V	81.6V
		OCP(CURRENT)	244.8A	489.6A
		OTP(TEMPER)	85℃	85℃
INPUT RESISTANCE(LOAD OFF)			2㏁	2㏁
V SENSE			0~80V	0~80V
I MONITOR			0~10V/0~240A	0~10V/0~480A
EXTERNAL MODE			0~10V/0~240A	0~10V/0~480A
PC INTERFACE			RS-232/RS-485	RS-232/RS-485
WEIGHT (APPROX)			33 kg	33 kg
DIMENSION(WxHxD)mm			420 x 200 x 550	420 x 200 x 550
ITEM			SML-2.4K	SMH-2.4K
OPERATING RANGE	POWER		2.4kW	2.4kW
	VOLTAGE		2~250V	2~250V
	CURRENT		0~120A	0~240A
	MIN. OPERATING VOLTAGE		2V at 120A	2V at 240A
MODE	CC	RANGE	0~100A/100~120A	0~100A/100~240A
		RESOLUTION	10mA/100mA	100mA
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
	CV	RANGE	0.05~100V/100~250V	0.05~100V/100~250V
		RESOLUTION	10mV/100mV	10mV/100mV
		ACCURACY	0.08%+0.1%F.S	0.08%+0.1%F.S
	CP	RANGE	0~100W/100~1000W/1000~2400W	0~100W/100~1000W/1000~2400W
		RESOLUTION	10mW/100mW/1W	10mW/100mW/1W
		ACCURACY	0.5%+0.5%F.S	0.5%~0.5%F.S
	CR	RANGE	0.16~10Ω/10~100Ω/ 100~1000/1000~9000Ω	0.04~10Ω/10~100Ω/ 100~1000Ω/1000~9000Ω
		RESOLUTION	1mΩ/10mΩ/100mΩ/1Ω	1mΩ/10mΩ/100Mω/1Ω
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
FUNCTION	LOAD ON DELAY TIME		1ms~5000ms	1ms~5000ms
	DYNAMIC	MEMORY	3CH(T1,T2,T3)	3CH(T1,T2,T3)
		TIME	100㎲~1s/1~5s	100㎲~1s/1~5s
		RESOLUTION	100㎲/1㎳	100㎲/1㎳
		SLEW RATE	0.001~6A/㎲	0.001~6A/㎲
		RESOLUTION	0.001A/㎲	0.001A/㎲
		CURRENT	0~100A/100~120A	0~100A/100~240A
		RESOLUTION	10mA/100mA	100mA
VOLTAGE READ BACK		RANGE	0~10V/10~100V/100~250V	0~10V/10~100V/100~250V
		RESOLUTION	10mV/100mV	10mV/100mV
		ACCURACY	0.05%+0.1%F.S	0.05%+0.1%F.S
CURRENT READ BACK		RANGE	0~10A/10~100A/100~120A	0~10A/10~100A/100~240A
		RESOLUTION	10mA/100mA	100mA
		ACCURACY	0.1%+0.1%F.S	0.1%+0.1%F.S
PROTECTION		OPP(POWER)	2496W	2496W
		OVP(VOLTAGE)	255V	255V
		OCP(CURRENT)	122.4A	244.8A
		OTP(TEMPER)	85℃	85℃
INPUT RESISTANCE(LOAD OFF)			80kΩ	80kΩ
V SENSE			0~250V	0~250V
I MONITOR			0~10V/0~120A	0~10V/0~240A
EXTERNAL MODE			0~10V/0~120A	0~10V/0~240A
PC INTERFACE			RS-232/RS-485(GPIB OPTION)	RS-232/RS-485(GPIB OPTION)
WEIGHT (APPROX)			33 kg	33 kg
DIMENSION(WxHxD)mm			420 x 200 x 550	420 x 200 x 550
ITEM			SHL-2.4K	SHH-2.4K
OPERATING RANGE	POWER		2.4kW	2.4kW
	VOLTAGE		4~500V	4~500V
	CURRENT		0~60A	0~120A
	MIN. OPERATING VOLTAGE		4V at 60A	4V at 120A
MODE	CC	RANGE	0~60A	0~100A/100~120A
		RESOLUTION	10mA	10mA/100mA
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
	CV	RANGE	0.05~100V/100~500V	0.05~100V/100~500V
		RESOLUTION	10mV/100mV	10mV/100mV
		ACCURACY	0.08%+0.1%F.S	0.08%+0.1%F.S
	CP	RANGE	0~100W/100~1000W/ 1000~2400W	0~100W/100~1000W/ 1000~2400W
		RESOLUTION	10mW/100mW/1W	10mW/100mW/1W
		ACCURACY	0.5%+0.5%F.S	0.5%+0.5%F.S
	CR	RANGE	0.06~10Ω/10~100Ω/ 100 ~1000/1000~10kΩ/ 10~50kΩ	0.16~10Ω/10~100Ω/ 100 ~1000/1000~10kΩ/ 10~50kΩ
		RESOLUTION	1mΩ/10mΩ/100m Ω/1Ω/100Ω	1mΩ/10mΩ/100m Ω/1Ω/100Ω
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
FUNCTION	LOAD ON DELAY TIME		1ms~5000ms	1ms~5000ms
	DYNAMIC	MEMORY	3CH(T1,T2,T3)	3CH(T1,T2,T3)
		TIME	100㎲~1s/1~5s	100㎲~1s/1~5s
		RESOLUTION	100㎲/1㎳	100㎲/1㎳
		SLEW RATE	0.001~3A/㎲	0.001~6A/㎲
		RESOLUTION	0.001A/㎲	0.001A/㎲
		CURRENT	0~60A	0~100A/100~120A
		RESOLUTION	10mA	10mA/100mA
VOLTAGE READ BACK		RANGE	0~10V/10~100V/100~500V	0~10V/10~100V/100~500V
		RESOLUTION	10mV/100mV	10mV/100mV
		ACCURACY	0.05%+0.1%F.S	0.05%+0.1%F.S
CURRENT READ BACK		RANGE	0~10A/10~60A	0~10A/10~100A/100~120A
		RESOLUTION	10mA	10mA/100mA
		ACCURACY	0.1%+0.1%F.S	0.1%+0.1%F.S
PROTECTION		OPP(POWER)	2496W	2496W
		OVP(VOLTAGE)	510V	510V
		OCP(CURRENT)	61.2A	122.4A
		OTP(TEMPER)	85℃	85℃
INPUT RESISTANCE(LOAD OFF)			80kΩ	80kΩ
V SENSE			0~500V	0~500V
I MONITOR			0~10V/0~60A	0~10V/0~120A
EXTERNAL MODE			0~10V/0~60A	0~10V/0~120A
PC INTERFACE			RS-232/RS-485(GPIB OPTION)	RS-232/RS-485(GPIB OPTION)
WEIGHT (APPROX)			33 kg	33 kg
DIMENSION(WxHxD)mm			420 x 200 x 550	420 x 200 x 550
▼ 5000Watt
ITEM			ELTO SLL-5K	ELTO SLH-5K
OPERATING RANGE	POWER		5KW	5KW
	VOLTAGE		1.0~80V	1.0~80V
	CURRENT		0~500A	0~1000A
	MIN. OPERATING VOLTAGE		1.0V at 500A	1.0V at 1000A
MODE	CC	RANGE	0~100A/100~500A	0~100A/100~1000A
		RESOLUTION	10mA/100mA	100mA
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
	CV	RANGE	0.05~80V	0.05~80V
		RESOLUTION	10mV	10mV
		ACCURACY	0.08%+0.1%F.S	0.08%+0.1%F.S
	CP	RANGE	0~100W/100~1000W/1000~5000W	0~100W/100~1000W/1000~5000W
		RESOLUTION	10mW/100mW/1W	10mW/100mW/1W
		ACCURACY	0.5%+0.5%F.S	0.5%~0.5%F.S
	CR	RANGE	0.02~10Ω/10~100Ω/ 100~800Ω	0.005~10Ω/10~100Ω/ 100~800Ω
		RESOLUTION	1mΩ/10mΩ/100m Ω	1mΩ/10mΩ/100m Ω
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
FUNCTION	LOAD ON DELAY TIME		1ms~5000ms	1ms~5000ms
	DYNAMIC	MEMORY	3CH(T1,T2,T3)	3CH(T1,T2,T3)
		TIME	100㎲~1s/1~5s	100㎲~1s/1~5s
		RESOLUTION	100㎲/1㎳	100㎲/1㎳
		SLEW RATE	0.001~25A/㎲	0.001~50A/㎲
		RESOLUTION	0.001A/㎲	0.001A/㎲
		CURRENT	0~100A/100~500A	0~100A/100~1000A
		RESOLUTION	10mA/100mA	100mA
VOLTAGE READ BACK		RANGE	0~10V/10~80V	0~10V/10~80V
		RESOLUTION	1mV/10mV	1mV/10mV
		ACCURACY	0.05%+0.1%F.S	0.05%+0.1%F.S
CURRENT READ BACK		RANGE	0~10A/10~100A/100~500A	0~10A/10~100A/100~1000A
		RESOLUTION	10mA/100mA	100mA
		ACCURACY	0.1%+0.1%F.S	0.1%+0.1%F.S
PROTECTION		OPP(POWER)	5200W	5200W
		OVP(VOLTAGE)	81.6V	81.6V
		OCP(CURRENT)	502A	1020A
		OTP(TEMPER)	85℃	85℃
INPUT RESISTANCE(LOAD OFF)			2㏁	2㏁
V SENSE			0~80V	0~80V
I MONITOR			0~10V/0~500A	0~10V/0~1000A
EXTERNAL MODE			0~10V/0~500A	0~10V/0~1000A
PC INTERFACE			RS-232/RS-485	RS-232/RS-485
WEIGHT (APPROX)			33 kg	33 kg
DIMENSION(WxHxD)mm			420 x 200 x 550	420 x 200 x 550
ITEM			ELTO SML-5K	ELTO SMH-5K
OPERATING RANGE	POWER		5KW	5KW
	VOLTAGE		2~250V	2~250V
	CURRENT		0~250A	0~500A
	MIN. OPERATING VOLTAGE		2V at 250A	2V at 500A
MODE	CC	RANGE	0~100A/100~250A	0~100A/100~500A
		RESOLUTION	10mA/100mA	10mA/100mA
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
	CV	RANGE	0.05~100V/100~250V	0.05~100V/100~250V
		RESOLUTION	10mV/100mV	10mV/100mV
		ACCURACY	0.08%+0.1%F.S	0.08%+0.1%F.S
	CP	RANGE	0~100W/100~1000W/1000~5000W	0~100W/100~1000W/1000~5000W
		RESOLUTION	10mW/100mW/1W	10mW/100mW/1W
		ACCURACY	0.5%+0.5%F.S	0.5%+0.5%F.S
	CR	RANGE	0.08~10Ω/10~100Ω/ 100~1000Ω/1000~2500Ω	0.08~10Ω/10~100Ω/ 100~1000Ω/1000~5000Ω
		RESOLUTION	1mΩ/10mΩ/100m Ω/1Ω	1mΩ/10mΩ/100m Ω/1Ω
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
FUNCTION	LOAD ON DELAY TIME		1ms~5000ms	1ms~5000ms
	DYNAMIC	MEMORY	3CH(T1,T2,T3)	3CH(T1,T2,T3)
		TIME	100㎲~1s/1~5s	100㎲~1s/1~5s
		RESOLUTION	100㎲/1㎳	100㎲/1㎳
		SLEW RATE	0.001~12.5A/㎲	0.001~12.5A/㎲
		RESOLUTION	0.001A/㎲	0.001A/㎲
		CURRENT	0~100A/100~250A	0~100A/100~500A
		RESOLUTION	10mA/100mA	10mA/100mA
VOLTAGE READ BACK		RANGE	0~10V/10~100V/100~250V	0~10V/10~100V/100~250V
		RESOLUTION	10mV/100mV	10mV/100mV
		ACCURACY	0.05%+0.1%F.S	0.05%+0.1%F.S
CURRENT READ BACK		RANGE	0~10A/10~100A/100~250A	0~10A/10~100A/100~500A
		RESOLUTION	10mA/100mA	10mA/100mA
		ACCURACY	0.1%+0.1%F.S	0.1%+0.1%F.S
PROTECTION		OPP(POWER)	5200W	5200W
		OVP(VOLTAGE)	255V	255V
		OCP(CURRENT)	255A	510A
		OTP(TEMPER)	85℃	85℃
INPUT RESISTANCE(LOAD OFF)			2㏁	2㏁
V SENSE			0~250V	0~250V
I MONITOR			0~10V/0~250A	0~10V/0~500A
EXTERNAL MODE			0~10V/0~250A	0~10V/0~500A
PC INTERFACE			RS-232/RS-485	RS-232/RS-485
WEIGHT (APPROX)			33 kg	33 kg
DIMENSION(WxHxD)mm			420 x 200 x 550	420 x 200 x 550
ITEM			ELTO SHL-5K	ELTO SHH-5K
OPERATING RANGE	POWER		5KW	5KW
	VOLTAGE		4~500V	4~500V
	CURRENT		0~120A	0~250A
	MIN. OPERATING VOLTAGE		4V at 120A	4V at 250A
MODE	CC	RANGE	0~100A/100~120A	0~100A/100~250A
		RESOLUTION	10mA/100mA	10mA/100mA
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
	CV	RANGE	0.05~100V/100~500V	0.05~100V/100~500V
		RESOLUTION	10mV/100mV	10mV/100mV
		ACCURACY	0.08%+0.1%F.S	0.08%+0.1%F.S
	CP	RANGE	0~100W/100~1000W/1000~5000W	0~100W/100~1000W/1000~5000W
		RESOLUTION	10mW/100mW/1W	10mW/100mW/1W
		ACCURACY	0.5%+0.5%F.S	0.5%~0.5%F.S
	CR	RANGE	0.34~10Ω/10~100Ω/ 100~1000Ω/1000~9000Ω	0.08~10Ω/10~100Ω/ 100~1000Ω/1000~5000Ω
		RESOLUTION	1mΩ/10mΩ/100mΩ/1Ω	1mΩ/10mΩ/100m Ω/1Ω
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
FUNCTION	LOAD ON DELAY TIME		1ms~5000ms	1ms~5000ms
	DYNAMIC	MEMORY	3CH(T1,T2,T3)	3CH(T1,T2,T3)
		TIME	100㎲~1s/1~5s	100㎲~1s/1~5s
		RESOLUTION	100㎲/1㎳	100㎲/1㎳
		SLEW RATE	0.001~6A/㎲	0.001~12.5A/㎲
		RESOLUTION	0.001A/㎲	0.001A/㎲
		CURRENT	0~100A/100~120A	0~100A/100~250A
		RESOLUTION	10mA/100mA	10mA/100mA
VOLTAGE READ BACK		RANGE	0~10V/10~100V/100~500V	0~10V/10~100V/100~500V
		RESOLUTION	10mV/100mV	10mV/100mV
		ACCURACY	0.05%+0.1%F.S	0.05%+0.1%F.S
CURRENT READ BACK		RANGE	0~10A/10~100A/100~120A	0~10A/10~100A/100~250A
		RESOLUTION	10mA/100mA	10mA/100mA
		ACCURACY	0.1%+0.1%F.S	0.1%+0.1%F.S
PROTECTION		OPP(POWER)	5200W	5200W
		OVP(VOLTAGE)	510V	510V
		OCP(CURRENT)	122.4A	255A
		OTP(TEMPER)	85℃	85℃
INPUT RESISTANCE(LOAD OFF)			2㏁	2㏁
V SENSE			0~500V	0~500V
I MONITOR			0~10V/0~120A	0~10V/0~250A
EXTERNAL MODE			0~10V/0~120A	0~10V/0~250A
PC INTERFACE			RS-232/RS-485	RS-232/RS-485
WEIGHT (APPROX)			33 kg	33 kg
DIMENSION(WxHxD)mm			420 x 200 x 550	420 x 200 x 550
▼ 10KWatt
ITEM			ELTO SLL-10K	ELTO SLM-10K
OPERATING RANGE	POWER		10KW	10KW
	VOLTAGE		1.0~80V	1.0~80V
	CURRENT		0~500A	0~1000A
	MIN. OPERATING VOLTAGE		1.0V at 500A	1.0V at 1000A
MODaE	CC	RANGE	0~100A/100~500A	0~100A/100~1000A
		RESOLUTION	10mA/100mA	100mA
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
	CV	RANGE	0.05~80V	0.05~80V
		RESOLUTION	10mV	10mV
		ACCURACY	0.08%+0.1%F.S	0.08%+0.1%F.S
	CP	RANGE	0~100W/100~1000W /1000~10000W	0~100W/100~1000W /1000~10000W
		RESOLUTION	10mW/100mW/1W	10mW/100mW/1W
		ACCURACY	0.5%+0.5%F.S	0.5%+0.5%F.S
	CR	RANGE	0.04~10Ω/10~100Ω/ 100 ~800Ω	0.01~10Ω/10~100Ω/ 100 ~800Ω
		RESOLUTION	1mΩ/10mΩ/100m Ω	1mΩ/10mΩ/100m Ω
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
FUNCTION	LOAD ON DELAY TIME		1ms~5000ms	1ms~5000ms
	DYNAMIC	MEMORY	3CH(T1,T2,T3)	3CH(T1,T2,T3)
		TIME	100㎲~1s/1~5s	100㎲~1s/1~5s
		RESOLUTION	100㎲/1㎳	100㎲/1㎳
		SLEW RATE	0.001~25A/㎲	0.001~25A/㎲
		RESOLUTION	0.001A/㎲	0.001A/㎲
		CURRENT	0~100A/100~500A	0~100A/100~1000A
		RESOLUTION	10mA/100mA	100mA
VOLTAGE READ BACK		RANGE	0~10V/10~80V	0~10V/10~80V
		RESOLUTION	1mV/10mV	1mV/10mV
		ACCURACY	0.05%+0.1%F.S	0.05%+0.1%F.S
CURRENT READ BACK		RANGE	0~10A/10~100A /100~500A	0~10A/10~100A /100~1000A
		RESOLUTION	10mA/100mA	100mA
		ACCURACY	0.1%+0.1%F.S	0.1%+0.1%F.S
PROTECTION		OPP(POWER)	10400W	10400W
		OVP(VOLTAGE)	81.6V	81.6V
		OCP(CURRENT)	510A	1020A
		OTP(TEMPER)	85℃	85℃
INPUT RESISTANCE(LOAD OFF)			2㏁	2㏁
V SENSE			0~80V	0~80V
I MONITOR			0~10V/0~500A	0~10V/0~1000A
EXTERNAL MODE			0~10V/0~500A	0~10V/0~1000A
PC INTERFACE			RS-232/RS-485	RS-232/RS-485
WEIGHT (APPROX)			33 kg	33 kg
DIMENSION(WxHxD)mm			420 x 200 x 550	420 x 200 x 550
ITEM			ELTO SMH-10K	ELTO SML-10K
OPERATING RANGE	POWER		10kW	10kW
	VOLTAGE		2~250V	2~250V
	CURRENT		0~1000A	0~500A
	MIN. OPERATING VOLTAGE		2V at 1000A	2V at 500A
MODE	CC	RANGE	0~100A/100~1000A	0~100A/100~500A
		RESOLUTION	100mA	100mA
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
	CV	RANGE	0.05~100V/100~250V	0.05~100V/100~250V
		RESOLUTION	10mV/100mV	10mV/100mV
		ACCURACY	0.08%+0.1%F.S	0.08%+0.1%F.S
	CP	RANGE	0~100W/100~1000W/1000~10000W	0~100W/100~1000W/1000~10000W
		RESOLUTION	10mW/100mW/1W	10mW/100mW/1W
		ACCURACY	0.5%+0.5%F.S	0.5%~0.5%F.S
	CR	RANGE	0.01~10Ω/10~100Ω/ 100 ~1000/1000~2500Ω	0.04~10Ω/10~100Ω/ 100 ~1000/1000~2500Ω
		RESOLUTION	1mΩ/10mΩ/100m Ω/1Ω	1mΩ/10mΩ/100m Ω/1Ω
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
FUNCTION	LOAD ON DELAY TIME		1ms~5000ms	1ms~5000ms
	DYNAMIC	MEMORY	3CH(T1,T2,T3)	3CH(T1,T2,T3)
		TIME	100㎲~1s/1~5s	100㎲~1s/1~5s
		RESOLUTION	100㎲/1㎳	100㎲/1㎳
		SLEW RATE	0.001~50A/㎲	0.001~25A/㎲
		RESOLUTION	0.001A/㎲	0.001A/㎲
		CURRENT	0~100A/100~1000A	0~100A/100~500A
		RESOLUTION	100mA	100mA
VOLTAGE READ BACK		RANGE	0~10V/10~100V/100~250V	0~10V/10~100V/100~250V
		RESOLUTION	10mV/100mV	10mV/100mV
		ACCURACY	0.05%+0.1%F.S	0.05%+0.1%F.S
CURRENT READ BACK		RANGE	0~10A/10~100A/100~1000A	0~10A/10~100A/100~500A
		RESOLUTION	100mA	100mA
		ACCURACY	0.1%+0.1%F.S	0.1%+0.1%F.S
PROTECTION		OPP(POWER)	10400W	10400W
		OVP(VOLTAGE)	255V	255V
		OCP(CURRENT)	1040A	510A
		OTP(TEMPER)	85℃	85℃
INPUT RESISTANCE(LOAD OFF)			80kΩ	80kΩ
V SENSE			0~250V	0~250V
I MONITOR			0~10V/0~1000A	0~10V/0~500A
EXTERNAL MODE			0~10V/0~1000A	0~10V/0~500A
PC INTERFACE			RS-232/RS-485(GPIB OPTION)	RS-232/RS-485(GPIB OPTION)
WEIGHT (APPROX)			33 kg	33 kg
DIMENSION(WxHxD)mm			420 x 200 x 550	420 x 200 x 550
ITEM			ELTO SHL-10K	ELTO SHH-10K
OPERATING RANGE	POWER		10kW	10kW
	VOLTAGE		4~500V	4~500V
	CURRENT		0~250A	0~500A
	MIN. OPERATING VOLTAGE		4V at 250A	4V at 500A
MODE	CC	RANGE	0~100A/100~250A	0~100A/100~500A
		RESOLUTION	100mA	100mA
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
	CV	RANGE	0.05~100V/100~500V	0.05~100V/100~500V
		RESOLUTION	10mV/100mV	10mV/100mV
		ACCURACY	0.08%+0.1%F.S	0.08%+0.1%F.S
	CP	RANGE	0~100W/100~1000W/1000~10000W	0~100W/100~1000W/1000~10000W
		RESOLUTION	10mW/100mW/1W	10mW/100mW/1W
		ACCURACY	0.5%+0.5%F.S	0.5%+0.5%F.S
	CR	RANGE	0.16~10Ω/10~100Ω/ 100 ~1000/1000~5000Ω	0.04~10Ω/10~100Ω/ 100 ~1000/1000~5000Ω
		RESOLUTION	1mΩ/10mΩ/100m Ω/1Ω	1mΩ/10mΩ/100m Ω/1Ω
		ACCURACY	0.06%+0.2%F.S	0.06%+0.2%F.S
FUNCTION	LOAD ON DELAY TIME		1ms~5000ms	1ms~5000ms
	DYNAMIC	MEMORY	3CH(T1,T2,T3)	3CH(T1,T2,T3)
		TIME	100㎲~1s/1~5s	100㎲~1s/1~5s
		RESOLUTION	100㎲/1㎳	100㎲/1㎳
		SLEW RATE	0.001~12.5A/㎲	0.001~25A/㎲
		RESOLUTION	0.001A/㎲	0.001A/㎲
		CURRENT	0~100A/100~250A	0~100A/100~500A
		RESOLUTION	100mA	100mA
VOLTAGE READ BACK		RANGE	0~10V/10~100V/100~500V	0~10V/10~100V/100~500V
		RESOLUTION	10mV/100mV	10mV/100mV
		ACCURACY	0.05%+0.1%F.S	0.05%+0.1%F.S
CURRENT READ BACK		RANGE	0~10A/10~100A/100~250A	0~10A/10~100A/100~500A
		RESOLUTION	100mA	100mA
		ACCURACY	0.1%+0.1%F.S	0.1%+0.1%F.S
PROTECTION		OPP(POWER)	10400W	10400W
		OVP(VOLTAGE)	510V	510V
		OCP(CURRENT)	255A	510A
		OTP(TEMPER)	85℃	85℃
INPUT RESISTANCE(LOAD OFF)			80kΩ	80kΩ
V SENSE			0~500V	0~500V
I MONITOR			0~10V/0~250A	0~10V/0~500A
EXTERNAL MODE			0~10V/0~250A	0~10V/0~500A
PC INTERFACE			RS-232/RS-485(GPIB OPTION)	RS-232/RS-485(GPIB OPTION)
WEIGHT (APPROX)			33 kg	33 kg
DIMENSION(WxHxD)mm			420 x 200 x 550	420 x 200 x 550

제품설명

사양/라인업

다운로드

DC Input 용량

MODEL

DC 입력

전압/전류/WATT

DATA SHEET

200W

SL-200

80V 40A 200W

SM-200

250V 20A 200W

SH-200

500V 10A 200W

200W - 2CH

(Module Type)

200W - 4CH

(Module Type)

300W

SL-300

80V 60A 300W

SM-300

250V 30A 300W

SH-300

500V 15A 300W

300W - 2CH

(Module Type)

300W - 4CH

(Module Type)

600W

SL-600

80V 120A 600W

SM-600

250V 60A 600W

SH-600

500V 30A 600W

1200W

SL-1200

80V 240A 1200W

SM-1200

250V 120A 1200W

SH-1200

500V 60A 1200W

2400W

SLL-2400

80V 240A 2400W

SLH-2400

80V 480A 2400W

SML-2400

250V 120A 2400W

SMH-2400

250V 240A 2400W

SHL-2400

500V 60A 2400W

SHH-2400

500V 120A 2400W

5KW

SLL-5000

80V 500A 5KW

SLH-5000

80V 1000A 5KW

SML-5000

250V 250A 5KW

SMH-5000

250V 500A 5KW

SHL-5000

500V 120A 5KW

10KW

SLL-10K

80V 500A 10KW

SLM-10K

80V 1000A 10KW

SML-10K

250V 500A 10KW

SMH-10K

250V 1000A 10KW

SHL-10K

500V 250A 10KW

(파워티엠 PowerTM)전원공급기,전자부하,주파수변환기,SMPS

HOME   |     온라인견적요청   | 쇼핑몰 바로가기   |   CONTACT US    | ★ 즐겨찾기추가





Tel : 031-750-0440 (代)  / Fax : 031-750-0442 / E-mail : powertm@powertm.co.kr

Add: 경기도 성남시 중원구 갈마치로 302, B동602호(상대원동,성남우림라이온스밸리5차) (우:13201)

Copyright(C) 주식회사 파워티엠 (PowerTM Co.,Ltd.) All rights Reserved. ●
